Search › Model › ZSP170

ZSP170

Toyota SIENTA · 2016 · 2,302 parts · 160 categories

2,302 items

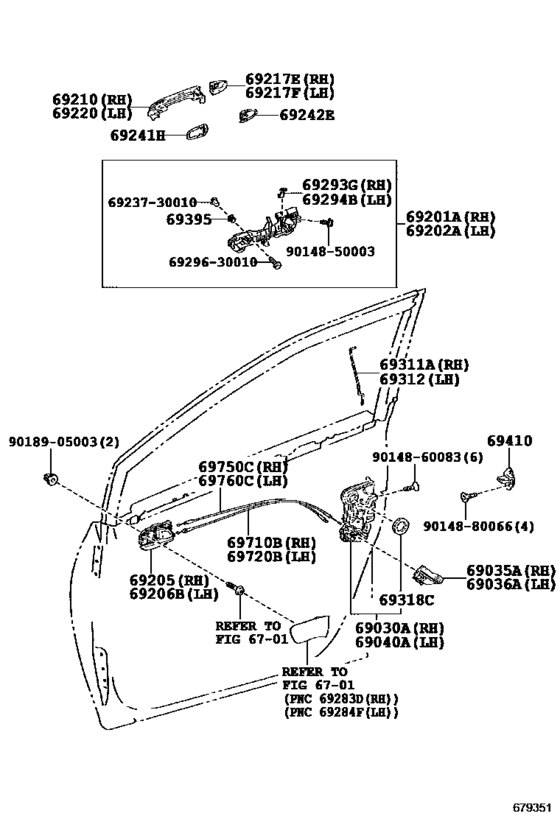

Front Door Lock & Handle ([11.2016 - ] (1611- )) 33

#	OEM	Part name
69030	69030-02580	Lock Assy, Front Door W/motor, Rh
69035	69035-02050	Cover Sub-Assy, Front Door Lock, Rh
69036	69036-02050	Cover Sub-Assy, Front Door Lock, Lh
69040	69040-02560	Lock Assy, Front Door W/motor, Lh
69201	69201-0D200	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-0D190	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0D480-C0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0D480-C0	Handle Sub-Assy, Front Door Inside, Lh
69210	69210-28090-A1	Handle Assy, Front Door, Outside Rh
69210	69210-28090-B0	Handle Assy, Front Door, Outside Rh
69210	69210-28090-B2	Handle Assy, Front Door, Outside Rh
69210	69210-28090-C4	Handle Assy, Front Door, Outside Rh
69210	69210-28090-D5	Handle Assy, Front Door, Outside Rh
69210	69210-28090-F1	Handle Assy, Front Door, Outside Rh
69217	69217-0D923	Cover, Front Door Outside Handle, Rh
69217	69217-0D922	Cover, Front Door Outside Handle, Lh
69241	69241-0D210	Pad, Front Door Outside Handle, Front
69242	69242-0D140	Pad, Rear Door Outside Handle, Front
69293	69293-0B060	Snap, Front Door Outside Handle
69294	69293-0B050	Snap, Front Door Outside Handle
69311	69311-0D190	Rod, Front Door Lock Open, Rh
69312	69312-0D190	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69395	69239-0M010	Bush(For Door Outside Handle)
69410	69410-02040	Plate Assy, Front Door Lock Striker
69710	69710-52240	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-52160	Cable Assy, Front Door Inside Locking, Rh
6923730010	69237-30010	Nut, Front Door Handle
6929630010	69296-30010	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9018905003	90189-05003	CLIP

OEM	Part name	Category
69030-02580	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69035-02050	Cover Sub-Assy, Front Door Lock, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69036-02050	Cover Sub-Assy, Front Door Lock, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69040-02560	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69201-0D200	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69202-0D190	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69205-0D480-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69206-0D480-C0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-A1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-B0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-B2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-C4	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-D5	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69210-28090-F1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69217-0D922	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69217-0D923	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69237-30010	Nut, Front Door Handle	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69239-0M010	Bush(For Door Outside Handle)	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69241-0D210	Pad, Front Door Outside Handle, Front	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69242-0D140	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69293-0B050	Snap, Front Door Outside Handle	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69293-0B060	Snap, Front Door Outside Handle	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69296-30010	Screw, Door Inside Handle	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69311-0D190	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69312-0D190	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69410-02040	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69710-52240	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
69750-52160	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([11.2016 - ] (1611- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([11.2016 - ] (1611- ))
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([11.2016 - ] (1611- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([11.2016 - ] (1611- ))
90189-05003	CLIP	Front Door Lock & Handle ([11.2016 - ] (1611- ))
