ZSP170

Toyota SIENTA · 2016 · 2,302 parts · 160 categories

2,302 items

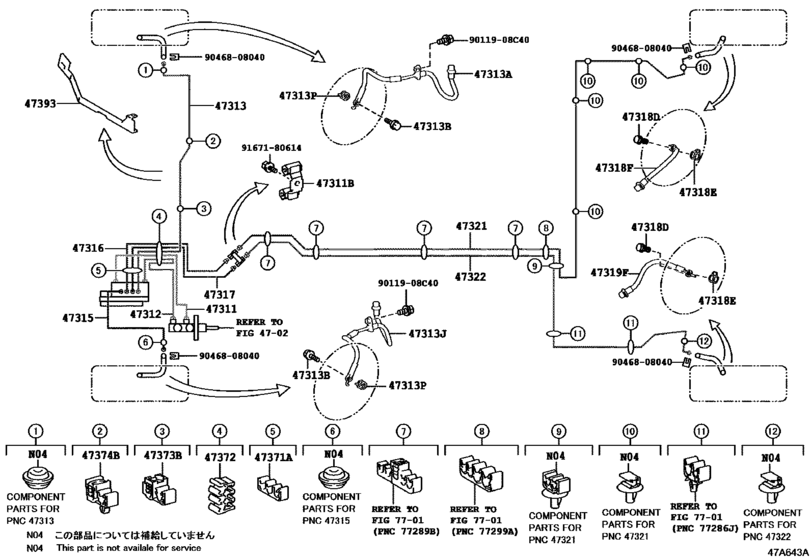

Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170) 22

#	OEM	Part name
47311	47311-0D860	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47312	47312-0D790	Tube, Front Brake, No.2
47313	47313-0D750	Tube, Front Brake, No.3
47313	90947-T2119	Hose, Flexible, No.1(For Front)
47313	90401-10058	Bolt, Union(For Front Flexible Hose)
47313	90947-T2120	Hose, Flexible, No.2(For Front)
47313	47389-50021	Gasket(For Front Flexible Hose)
47315	47315-0D730	Tube, Front Brake, No.5
47316	47316-0D640	Tube, Front Brake, No.6
47317	47317-0D640	Tube, Front Brake, No.7
47318	90947-T2117	Hose, Flexible(For Rear Rh)
47321	47321-0D320	Tube, Rear Brake, No.1
47322	47322-0D320	Tube, Rear Brake, No.2
47371	90464-00857	Clamp, Brake Tube, No.1
47372	90949-01D98	Clamp, Brake Tube, No.6
47373	90949-01D90	Clamp, Brake Tube, No.3
47374	90949-01D89	Clamp, Brake Tube, No.4
47393	47393-0D030	Insulator, Brake Tube Heat
9011908	90119-08C40	New Genuine Part
9046808040	90468-08040	CLIP
9167180614	91671-80614	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
47311-0D860	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47312-0D790	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47313-0D750	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47315-0D730	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47316-0D640	Tube, Front Brake, No.6	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47317-0D640	Tube, Front Brake, No.7	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47321-0D320	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47322-0D320	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47389-50021	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
47393-0D030	Insulator, Brake Tube Heat	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90119-08C40	New Genuine Part	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90401-10058	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90464-00857	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90468-08040	CLIP	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90947-T2117	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90947-T2119	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90947-T2120	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90949-01D89	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90949-01D90	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
90949-01D98	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
91671-80614	Bolt (For Transmission Control Cable Bracket)	Brake Tube & Clamp ([11.2016 - ] (1611- )ZSP170)
