ZSA44

Toyota RAV4-VANGUARD · 2012 · 2,882 parts · 176 categories

← Back to categories

2,882 items

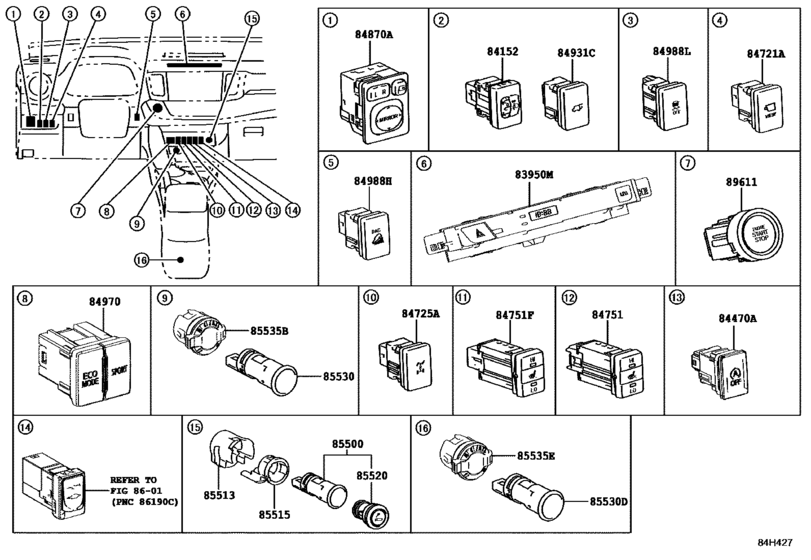

Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- )) 19

#	OEM	Part name
83950	83950-0R060	Lamp Assy, Telltale
84152	84152-0R031	Switch, Headlamp Leveling
84470	84470-0R030	Switch Assy, Ecorun Cancel
84721	84721-0R010	Switch, Front Wide View
84725	84725-0R011	Switch, Differential Lock
84751	84751-0R042	Switch, Seat Heater
84751	84751-0R052	Switch, Seat Heater
84870	84870-0D050	Switch Assy, Outer Mirror
84931	84930-0R031	Switch, Back Door Control
84970	84970-0R020	Switch Assy, Combination
84988	84988-0R091	Switch, Vsc Off
85500	85500-50090	Lighter Assy, Cigarette, Rear
85513	85513-28010	Cover, Cigarette Lighter
85515	85515-0R020	Stay, Cigarette Lighter Bezel
85520	85520-30200	Knob And Element Assy, Cigarette Lighter
85530	85530-0N010	Socket Assy, Power Outlet, No.1
85535	85535-0R050	Cover, Power Outlet Socket, No.1
85535	85535-0R060	Cover, Power Outlet Socket, No.2
89611	89611-0R012	Switch, Push Start

OEM	Part name	Category
83950-0R060	Lamp Assy, Telltale	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84152-0R031	Switch, Headlamp Leveling	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84470-0R030	Switch Assy, Ecorun Cancel	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84721-0R010	Switch, Front Wide View	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84725-0R011	Switch, Differential Lock	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84751-0R042	Switch, Seat Heater	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84751-0R052	Switch, Seat Heater	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84870-0D050	Switch Assy, Outer Mirror	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84930-0R031	Switch, Back Door Control	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84970-0R020	Switch Assy, Combination	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
84988-0R091	Switch, Vsc Off	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85500-50090	Lighter Assy, Cigarette, Rear	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85513-28010	Cover, Cigarette Lighter	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85515-0R020	Stay, Cigarette Lighter Bezel	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85520-30200	Knob And Element Assy, Cigarette Lighter	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85530-0N010	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85535-0R050	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
85535-0R060	Cover, Power Outlet Socket, No.2	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))
89611-0R012	Switch, Push Start	Switch & Relay & Computer ([07.2016 - ] INSTRUMENT PANEL (1607- ))

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 176
Collected: 2026-08-02
