Search › Model › ZSA44

ZSA44

Toyota RAV4-VANGUARD · 2012 · 2,882 parts · 176 categories

← Back to categories

2,882 items

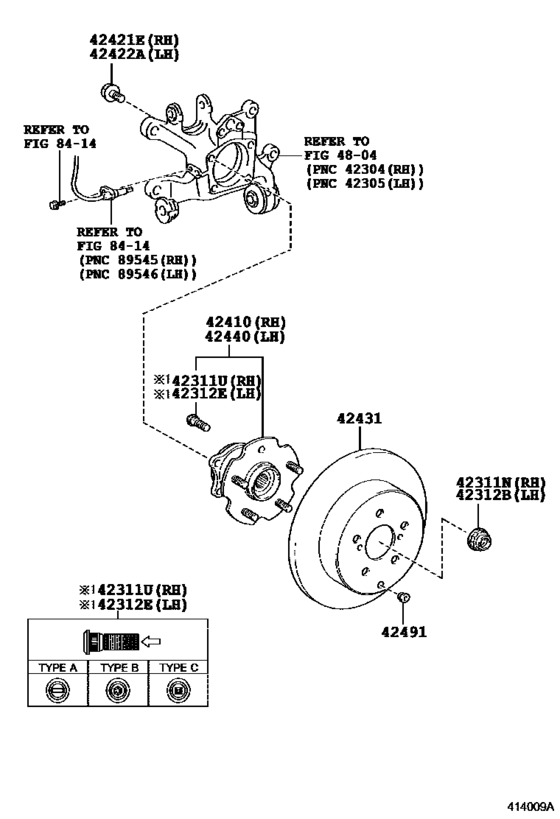

Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44) 19

#	OEM	Part name
4437	04439-0R010	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
41336	41336-0R030	Cover, Rear Drive Shaft Dust, Rh
42311	90177-22001	Nut (For Axle Shaft)
42311	90942-02049	Bolt, Hub
42311	90942-02082	Bolt, Hub
42311	90942-02081	Bolt, Hub (For Rear Axle Rh) - HUB (FOR FRONT AXLE RH)
42330	42330-0R030	Shaft Assy, Rear Drive, Rh
42330	90311-37004	Oil Seal, Rear Drive Shaft
42330	90311-37007	SEAL TYPE T OIL
42341	43425-0R090	Ring, Snap (For Rear Drive Shaft Rh)
42347	42345-0R130	Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)
42347	42345-0R140	Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)
42360	42360-0R030	Joint Assy, Rear Drive Shaft Inboard, Rh
42360	43425-0R100	Ring, Shaft Snap (For Rear Drive Shaft Inboard Joint Rh)
42370	42370-09120	Shaft Assy, Rear Drive Outboard Joint, Rh
42410	42410-0R020	Hub & Bearing Assy, Rear Axle, Rh
42421	90105-12350	Bolt (For Rear Axle Bearing Case Rh)
42431	42431-0R020	Disc, Rear
42491	47493-06010	Plug, Shoe Adjusting Hole (For Parking Brake)

OEM	Part name	Category
04439-0R010	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
41336-0R030	Cover, Rear Drive Shaft Dust, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42330-0R030	Shaft Assy, Rear Drive, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42345-0R130	Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42345-0R140	Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42360-0R030	Joint Assy, Rear Drive Shaft Inboard, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42370-09120	Shaft Assy, Rear Drive Outboard Joint, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42410-0R020	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
42431-0R020	Disc, Rear	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
43425-0R090	Ring, Snap (For Rear Drive Shaft Rh)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
43425-0R100	Ring, Shaft Snap (For Rear Drive Shaft Inboard Joint Rh)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
47493-06010	Plug, Shoe Adjusting Hole (For Parking Brake)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90105-12350	Bolt (For Rear Axle Bearing Case Rh)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90177-22001	Nut (For Axle Shaft)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90311-37004	Oil Seal, Rear Drive Shaft	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90311-37007	SEAL TYPE T OIL	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90942-02049	Bolt, Hub	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90942-02081	Bolt, Hub (For Rear Axle Rh) - HUB (FOR FRONT AXLE RH)	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)
90942-02082	Bolt, Hub	Rear Axle Shaft & Hub ([08.2013 - ] (1308- )ASA44,ZSA44)

Source: Public OEM parts-catalog data
Variants: 2 / 38
Category: 176
Collected: 2026-08-02
