Search › Model › ZSA44

ZSA44

Toyota RAV4-VANGUARD · 2012 · 2,882 parts · 176 categories

2,882 items

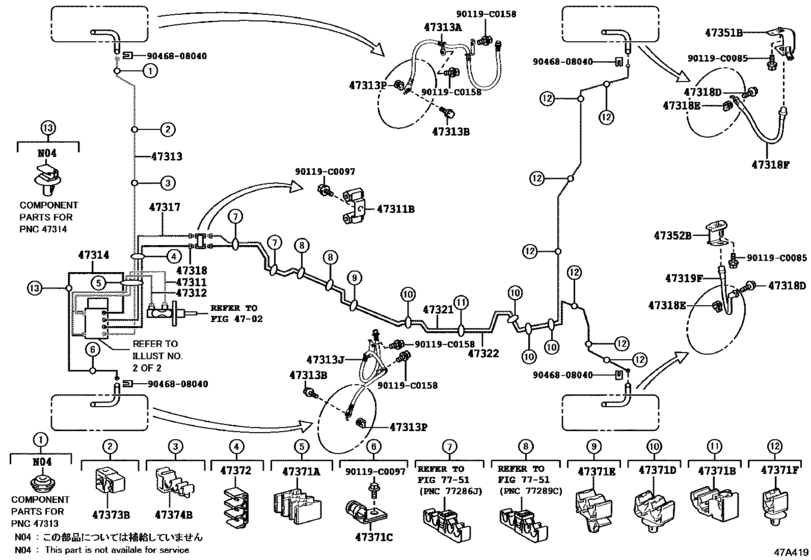

Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- )) 45

#	OEM	Part name
44510	44050-0R270	Actuator Assy, Brake
44510	44050-0R360	Actuator Assy, Brake
44521	44521-12050	Collar, Brake Actuator Case, No.1
44546	44546-12110	Cushion, Brake Actuator Bolt
44590	44590-78010	Bracket Assy, Brake Actuator
47311	47311-0R080	Tube, Front Brake, No.1
47311	47311-0R081	Tube, Front Brake, No.1
47311	90412-10260	Way, No.1(For Front Brake Tube)
47311	90412-C0001	Way, No.1(For Front Brake Tube)
47312	47312-0R070	Tube, Front Brake, No.2
47312	47312-0R071	Tube, Front Brake, No.2
47313	47313-0R080	Tube, Front Brake, No.3
47313	47313-0R081	Tube, Front Brake, No.3
47313	90947-C2061	Hose, Flexible, No.1(For Front)
47313	90401-C0001	Bolt, Union(For Front Flexible Hose)
47313	90947-C2062	Hose, Flexible, No.2(For Front)
47313	47389-50020	Gasket(For Front Flexible Hose)
47314	47314-0R120	Tube, Front Brake, No.4
47314	47314-0R121	Tube, Front Brake, No.4
47317	47317-0R080	Tube, Front Brake, No.7
47317	47317-0R081	Tube, Front Brake, No.7
47318	47318-0R080	Tube, Front Brake, No.8
47318	47318-0R081	Tube, Front Brake, No.8
47318	90947-C2063	Hose, Flexible(For Rear Rh)
47319	90947-C2064	Hose, Flexible(For Rear Lh)
47321	47321-0R060	Tube, Rear Brake, No.1
47322	47322-0R060	Tube, Rear Brake, No.2
47351	47351-42071	Bracket, Flexible Hose, No.1
47352	47352-42081	Bracket, Flexible Hose, No.2
47371	90949-01E56	Clamp, Brake Tube, No.1
47371	90949-01E57	Clamp, Brake Tube, No.1
47371	77299-32030	Clamp, Brake Tube, No.6
47371	90461-10781	Clamp, Brake Tube, No.6
47371	90469-07020	Clamp, Brake Tube, No.6
47371	90469-07019	Clamp, Brake Tube, No.1
47371	90949-01D29	Clamp(For Clutch Tube)
47372	90949-01E16	Clamp, Brake Tube, No.2
47373	90949-01C82	Clamp(For Clutch Master Cylinder Tube)
47374	90949-01D05	Clamp, Brake Tube, No.7
90119	90119-C0085	New Genuine Part
90119	90119-C0097	New Genuine Part
90119	90119-C0158	New Genuine Part
9011906844	90119-06844	Bolt, Brake Actuator Cushion
9017908200	90179-08200	New Genuine Part
9046808040	90468-08040	CLIP

OEM	Part name	Category
44050-0R270	Actuator Assy, Brake	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
44050-0R360	Actuator Assy, Brake	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
44521-12050	Collar, Brake Actuator Case, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
44546-12110	Cushion, Brake Actuator Bolt	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
44590-78010	Bracket Assy, Brake Actuator	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47311-0R080	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47311-0R081	Tube, Front Brake, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47312-0R070	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47312-0R071	Tube, Front Brake, No.2	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47313-0R080	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47313-0R081	Tube, Front Brake, No.3	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47314-0R120	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47314-0R121	Tube, Front Brake, No.4	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47317-0R080	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47317-0R081	Tube, Front Brake, No.7	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47318-0R080	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47318-0R081	Tube, Front Brake, No.8	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47321-0R060	Tube, Rear Brake, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47322-0R060	Tube, Rear Brake, No.2	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47351-42071	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47352-42081	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
47389-50020	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
77299-32030	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90119-06844	Bolt, Brake Actuator Cushion	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90119-C0085	New Genuine Part	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90119-C0097	New Genuine Part	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90119-C0158	New Genuine Part	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90179-08200	New Genuine Part	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90401-C0001	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90412-10260	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90412-C0001	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90461-10781	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90468-08040	CLIP	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90469-07019	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90469-07020	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90947-C2061	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90947-C2062	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90947-C2063	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90947-C2064	Hose, Flexible(For Rear Lh)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01C82	Clamp(For Clutch Master Cylinder Tube)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01D05	Clamp, Brake Tube, No.7	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01D29	Clamp(For Clutch Tube)	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01E16	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01E56	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
90949-01E57	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([07.2016 - ] W(VSC) (1607- ))
