Search › Model › ZSA42

ZSA42

Toyota RAV4-VANGUARD · 2012 · 2,523 parts · 170 categories

2,523 items

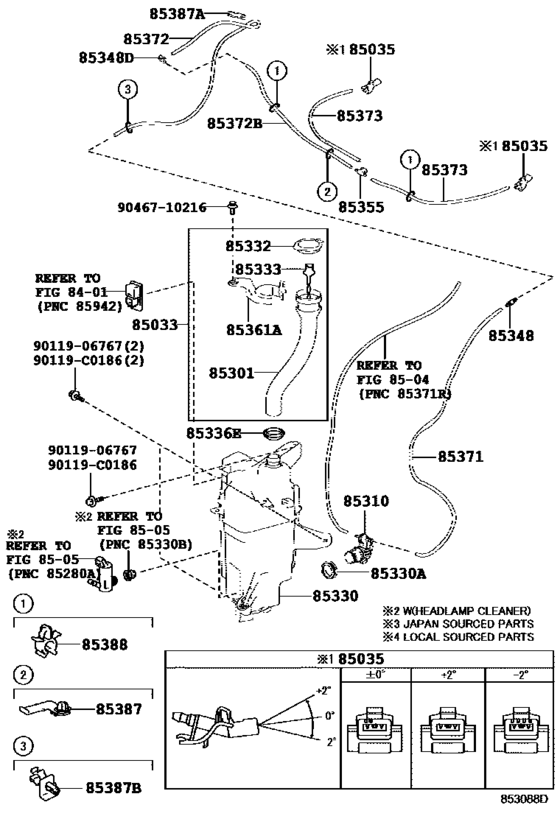

Windshield Washer ([08.2013 - ] (1308- )) 25

#	OEM	Part name
85033	85316-0R040	Cap Assy, Windshield Washer
85035	85381-12400	Nozzle Sub-Assy, Washer
85035	85381-12410	Nozzle Sub-Assy, Washer
85035	85381-12420	Nozzle Sub-Assy, Washer
85301	85319-0R020	Inlet Sub-Assy, Washer
85310	85330-42010	Motor And Pump Assy, Windshield Washer
85330	85315-0R040	Jar Assy, Windshield Washer
85330	85336-60300	Bush, Windshield Washer Jar
85332	85316-0P010	Cap, Windshield Washer Jar
85333	85312-0R010	Filter, Windshield Washer Jar
85336	85336-42320	Packing, Windshield Washer Jar
85348	85375-0D030	Joint, Windshield Washer Hose, No.1
85348	85375-60290	Joint, Windshield Washer Elbow, No.1
85355	85321-28020	Valve Sub-Assy, Washer
85361	85337-0R040	Bracket, Windshield Washer, No.1
85371	90068-33190	Hose, Windshield Washer (From Motor To Joint)
85372	90068-33195	Hose, Windshield Washer (From Joint To Joint), No.1
85372	90068-33196	Hose, Windshield Washer (From Joint To Joint), No.2
85373	90068-33200	Hose, Windshield Washer (From Joint To Nozzle)
85387	82711-10500	Clamp No.1 (For Windseield Washer)
85387	85387-02280	Clamp, Washer, No.2
85388	90469-07011	Clamp No.1 (For Windseield Washer)
90119	90119-C0186	New Genuine Part
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9046710216	90467-10216	Clip, Engine Under Cover, No.2

OEM	Part name	Category
82711-10500	Clamp No.1 (For Windseield Washer)	Windshield Washer ([08.2013 - ] (1308- ))
85312-0R010	Filter, Windshield Washer Jar	Windshield Washer ([08.2013 - ] (1308- ))
85315-0R040	Jar Assy, Windshield Washer	Windshield Washer ([08.2013 - ] (1308- ))
85316-0P010	Cap, Windshield Washer Jar	Windshield Washer ([08.2013 - ] (1308- ))
85316-0R040	Cap Assy, Windshield Washer	Windshield Washer ([08.2013 - ] (1308- ))
85319-0R020	Inlet Sub-Assy, Washer	Windshield Washer ([08.2013 - ] (1308- ))
85321-28020	Valve Sub-Assy, Washer	Windshield Washer ([08.2013 - ] (1308- ))
85330-42010	Motor And Pump Assy, Windshield Washer	Windshield Washer ([08.2013 - ] (1308- ))
85336-42320	Packing, Windshield Washer Jar	Windshield Washer ([08.2013 - ] (1308- ))
85336-60300	Bush, Windshield Washer Jar	Windshield Washer ([08.2013 - ] (1308- ))
85337-0R040	Bracket, Windshield Washer, No.1	Windshield Washer ([08.2013 - ] (1308- ))
85375-0D030	Joint, Windshield Washer Hose, No.1	Windshield Washer ([08.2013 - ] (1308- ))
85375-60290	Joint, Windshield Washer Elbow, No.1	Windshield Washer ([08.2013 - ] (1308- ))
85381-12400	Nozzle Sub-Assy, Washer	Windshield Washer ([08.2013 - ] (1308- ))
85381-12410	Nozzle Sub-Assy, Washer	Windshield Washer ([08.2013 - ] (1308- ))
85381-12420	Nozzle Sub-Assy, Washer	Windshield Washer ([08.2013 - ] (1308- ))
85387-02280	Clamp, Washer, No.2	Windshield Washer ([08.2013 - ] (1308- ))
90068-33190	Hose, Windshield Washer (From Motor To Joint)	Windshield Washer ([08.2013 - ] (1308- ))
90068-33195	Hose, Windshield Washer (From Joint To Joint), No.1	Windshield Washer ([08.2013 - ] (1308- ))
90068-33196	Hose, Windshield Washer (From Joint To Joint), No.2	Windshield Washer ([08.2013 - ] (1308- ))
90068-33200	Hose, Windshield Washer (From Joint To Nozzle)	Windshield Washer ([08.2013 - ] (1308- ))
90119-06767	Bolt, W/washer(For Engine Under Cover)	Windshield Washer ([08.2013 - ] (1308- ))
90119-C0186	New Genuine Part	Windshield Washer ([08.2013 - ] (1308- ))
90467-10216	Clip, Engine Under Cover, No.2	Windshield Washer ([08.2013 - ] (1308- ))
90469-07011	Clamp No.1 (For Windseield Washer)	Windshield Washer ([08.2013 - ] (1308- ))
