Search › Model › ZSA42
ZSA42

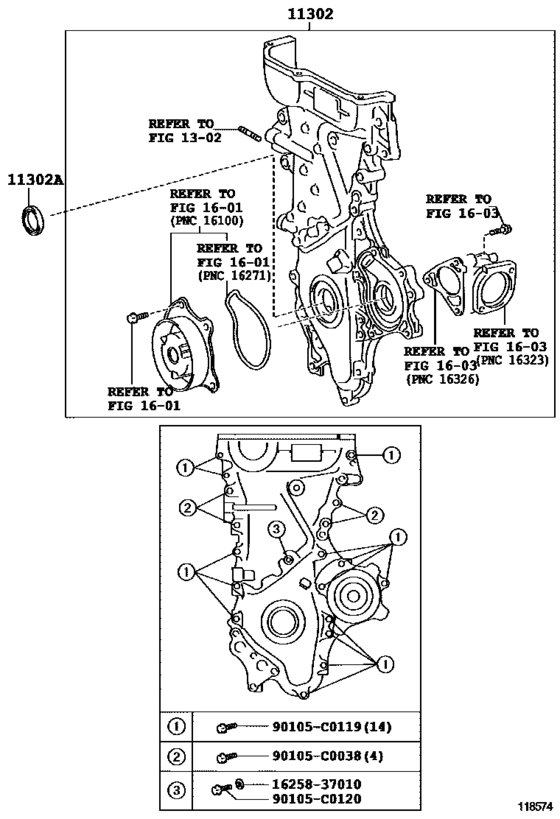

Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) 6
| # | OEM | Part name |
|---|---|---|
| 11302 | 11310-0T130 | Cover Sub-Assy, Timing Chain Or Belt |
| 11302 | 90311-T0024 | Seal, Oil(For Timing Gear Case Or Timing Chain Case) |
| 90105 | 90105-C0038 | New Genuine Part |
| 90105 | 90105-C0119 | New Genuine Part |
| 90105 | 90105-C0120 | New Genuine Part |
| 1625837010 | 16258-37010 | Washer, Seal(For Cylinder Head Cover) |
| OEM | Part name | Category |
|---|---|---|
| 11310-0T130 | Cover Sub-Assy, Timing Chain Or Belt | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
| 16258-37010 | Washer, Seal(For Cylinder Head Cover) | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
| 90105-C0038 | New Genuine Part | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
| 90105-C0119 | New Genuine Part | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
| 90105-C0120 | New Genuine Part | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
| 90311-T0024 | Seal, Oil(For Timing Gear Case Or Timing Chain Case) | Timing Gear Cover & Rear End Plate ([08.2013 - ] (1308- )6ZR#) |
