Search › Model › ZSA42

ZSA42

Toyota RAV4-VANGUARD · 2012 · 2,523 parts · 170 categories

2,523 items

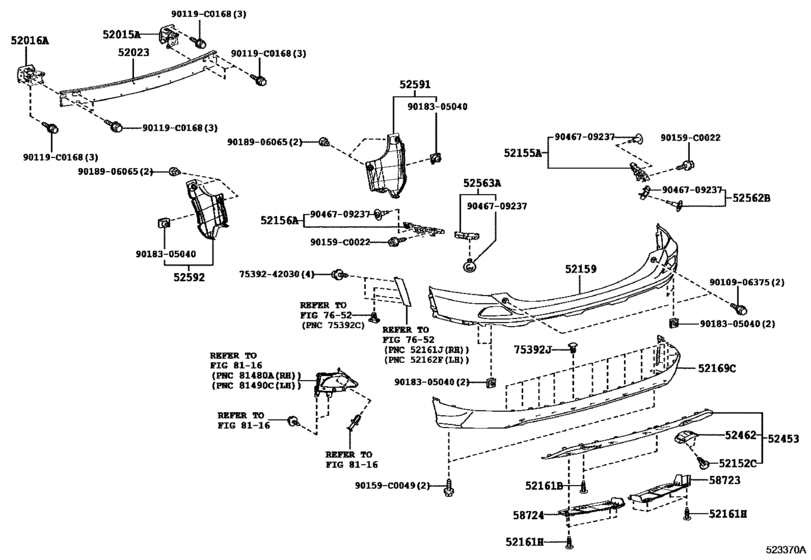

Rear Bumper & Bumper Stay ([07.2016 - ] (1607- )) 27

#	OEM	Part name
52015	52015-0R010	Arm Sub-Assy, Rear Bumper, Rh
52016	52016-0R010	Arm Sub-Assy, Rear Bumper, Lh
52023	52171-0R010	Reinforcement Sub-Assy, Rear Bumper
52152	90467-05170	Clip, Rear Bumper Side
52152	90467-C0048	Clip, Rear Bumper Side
52155	52155-0R060	Support, Rear Bumper Side, Rh
52156	52156-0R060	Support, Rear Bumper Side, Lh
52159	52159-0R916	Cover, Rear Bumper
52161	52161-02040	Piece, Rear Bumper
52169	52169-0R030	Cover, Rear Bumper, Lower
52453	52453-0R030	Guard, Rear Bumper, Center
52462	52462-0R010	Pad, Rear Bumper, Rh
52562	52562-0R060	Retainer, Rear Bumper, Upper Rh
52563	52563-0R060	Retainer, Rear Bumper, Upper Lh
52591	52591-0R060	Seal, Rear Bumper Side, Rh
52592	52592-0R060	Seal, Rear Bumper Side, Lh
58723	58723-0R050	Protector, Luggage Compartment Service Cover, No.1
58724	58724-0R050	Protector, Luggage Compartment Service Cover, No.2
75392	75392-0R030	Retainer, Outside Moulding
90119	90119-C0168	New Genuine Part
90159	90159-C0022	New Genuine Part
90159	90159-C0049	New Genuine Part
7539242030	75392-42030	Bolt
9010906375	90109-06375	BOLT
9018305040	90183-05040	NUT SPRING
9018906065	90189-06065	CLIP
9046709237	90467-09237	Clip, Rear Bumper Side

OEM	Part name	Category
52015-0R010	Arm Sub-Assy, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52016-0R010	Arm Sub-Assy, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52155-0R060	Support, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52156-0R060	Support, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52159-0R916	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52161-02040	Piece, Rear Bumper	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52169-0R030	Cover, Rear Bumper, Lower	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52171-0R010	Reinforcement Sub-Assy, Rear Bumper	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52453-0R030	Guard, Rear Bumper, Center	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52462-0R010	Pad, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52562-0R060	Retainer, Rear Bumper, Upper Rh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52563-0R060	Retainer, Rear Bumper, Upper Lh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52591-0R060	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
52592-0R060	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
58723-0R050	Protector, Luggage Compartment Service Cover, No.1	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
58724-0R050	Protector, Luggage Compartment Service Cover, No.2	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
75392-0R030	Retainer, Outside Moulding	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
75392-42030	Bolt	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90109-06375	BOLT	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90119-C0168	New Genuine Part	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90159-C0022	New Genuine Part	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90159-C0049	New Genuine Part	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90183-05040	NUT SPRING	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90189-06065	CLIP	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90467-05170	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90467-09237	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
90467-C0048	Clip, Rear Bumper Side	Rear Bumper & Bumper Stay ([07.2016 - ] (1607- ))
