Search › Model › ZSA42
ZSA42

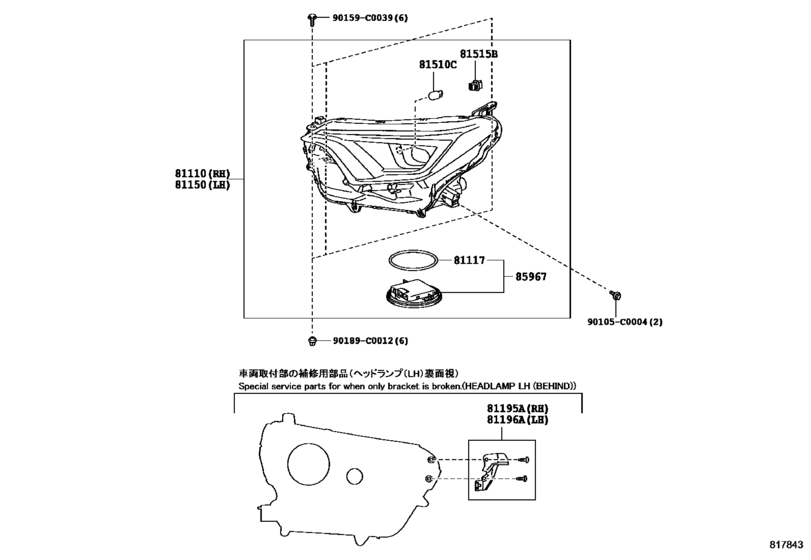

Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) 9
| # | OEM | Part name |
|---|---|---|
| 81110 | 81110-0R100 | Headlamp Assy, Rh |
| 81150 | 81150-0R100 | Headlamp Assy, Lh |
| 81195 | 81195-42040 | Retainer, Headlamp Protector, Lower Rh |
| 81196 | 81196-42040 | Retainer, Headlamp Protector, Lower Lh |
| 81510 | 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER |
| 81515 | 90075-60028 | Socket, Headlamp, Bulb |
| 90105 | 90105-C0004 | New Genuine Part |
| 90159 | 90159-C0039 | New Genuine Part |
| 90189 | 90189-C0012 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 81110-0R100 | Headlamp Assy, Rh | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 81150-0R100 | Headlamp Assy, Lh | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 81195-42040 | Retainer, Headlamp Protector, Lower Rh | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 81196-42040 | Retainer, Headlamp Protector, Lower Lh | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 90075-60028 | Socket, Headlamp, Bulb | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 90105-C0004 | New Genuine Part | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 90159-C0039 | New Genuine Part | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 90189-C0012 | New Genuine Part | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
| 90981-15011 | Bulb (For Turn Signal Lamp) 12V 21W, AMBER | Headlamp ([07.2016 - ] LED HEADLAMP (1607- )) |
