Search › Model › ZSA42

ZSA42

Toyota RAV4-VANGUARD · 2012 · 2,523 parts · 170 categories

2,523 items

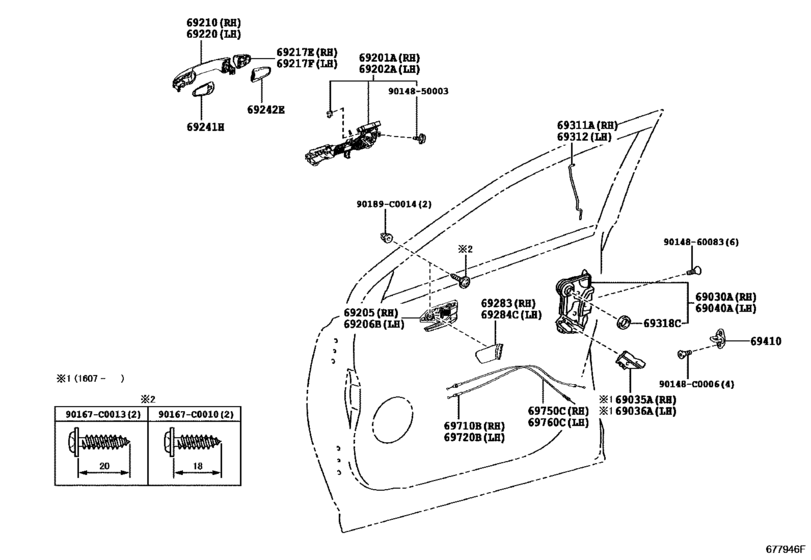

Front Door Lock & Handle ([08.2013 - ] (1308- )) 50

#	OEM	Part name
69030	69030-02620	Lock Assy, Front Door W/motor, Rh
69035	69035-02060	Cover Sub-Assy, Front Door Lock, Rh
69036	69036-02060	Cover Sub-Assy, Front Door Lock, Lh
69040	69040-02590	Lock Assy, Front Door W/motor, Lh
69201	69201-0R020	Frame Sub-Assy, Front Door Outside Handle, Rh
69201	69201-0R030	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-0R020	Frame Sub-Assy, Front Door Outside Handle, Lh
69202	69202-0R030	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-0R040-C0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-0R040-C0	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-0R040-A1	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-C0	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-D1	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-E0	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-E1	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-E2	Handle Assy, Front Door, Outside Rh
69210	69211-0R040-J0	Handle Assy, Front Door, Outside Rh
69210	69210-0R030-B1	Handle Assy, Front Door, Outside Rh
69217	69250-0R010-A1	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-C0	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-D1	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-E0	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-E1	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-E2	Cover, Front Door Outside Handle, Rh
69217	69250-0R010-J0	Cover, Front Door Outside Handle, Rh
69217	69217-0R080-A1	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-C0	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-D1	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-E0	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-E1	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-E2	Cover, Front Door Outside Handle, Lh
69217	69217-0R080-J0	Cover, Front Door Outside Handle, Lh
69217	69250-0R030	Cover, Front Door Outside Handle, Rh
69217	69217-0R120	Cover, Front Door Outside Handle, Lh
69241	69241-0R020	Pad, Rear Door Outside Handle, Front
69242	69242-0R020	Pad, Front Door Outside Handle, Rear
69283	69283-0R010-C0	Plug, Front Door Inside Handle Bezel, Rh
69284	69284-0R010-C0	Plug, Front Door Inside Handle Bezel, Lh
69311	69311-0R040	Rod, Front Door Lock Open, Rh
69312	69312-0R040	Rod, Front Door Lock Open, Lh
69318	69318-51010	Seal, Front Door Lock Hole, Rh
69410	69410-0D020	Plate Assy, Front Door Lock Striker
69710	69710-0R050	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-0R050	Cable Assy, Front Door Inside Locking, Rh
90148	90148-C0006	New Genuine Part
90167	90167-C0010	New Genuine Part
90167	90167-C0013	New Genuine Part
90189	90189-C0014	New Genuine Part
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR

OEM	Part name	Category
69030-02620	Lock Assy, Front Door W/motor, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69035-02060	Cover Sub-Assy, Front Door Lock, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69036-02060	Cover Sub-Assy, Front Door Lock, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69040-02590	Lock Assy, Front Door W/motor, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69201-0R020	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69201-0R030	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69202-0R020	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69202-0R030	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69205-0R040-C0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69206-0R040-C0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69210-0R030-B1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-A1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-C0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-D1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-E0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-E1	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-E2	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69211-0R040-J0	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-A1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-C0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-D1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-E0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-E1	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-E2	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R080-J0	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69217-0R120	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69241-0R020	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69242-0R020	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-A1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-C0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-D1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-E0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-E1	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-E2	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R010-J0	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69250-0R030	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69283-0R010-C0	Plug, Front Door Inside Handle Bezel, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69284-0R010-C0	Plug, Front Door Inside Handle Bezel, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69311-0R040	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69312-0R040	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69318-51010	Seal, Front Door Lock Hole, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69410-0D020	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69710-0R050	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
69750-0R050	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90148-C0006	New Genuine Part	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90167-C0010	New Genuine Part	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90167-C0013	New Genuine Part	Front Door Lock & Handle ([08.2013 - ] (1308- ))
90189-C0014	New Genuine Part	Front Door Lock & Handle ([08.2013 - ] (1308- ))
