ZSA42

Toyota RAV4-VANGUARD · 2012 · 2,523 parts · 170 categories

2,523 items

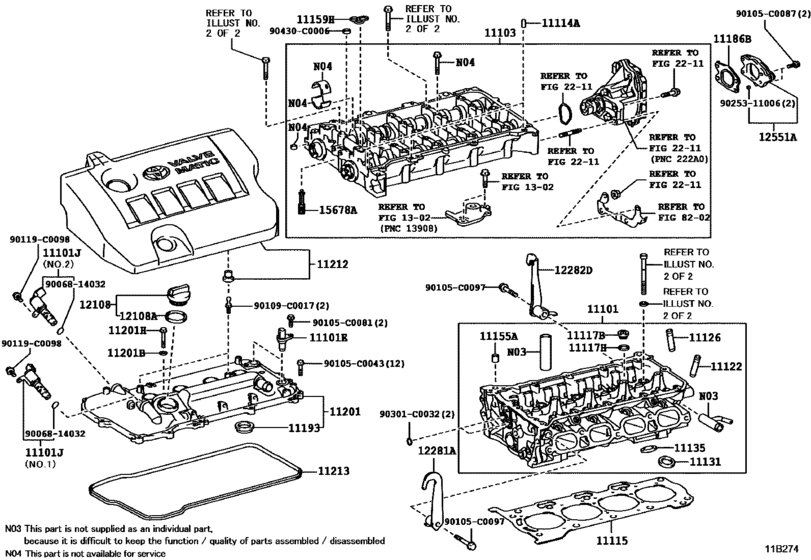

Cylinder Head ([07.2016 - ] (1607- )) 55

#	OEM	Part name
11101	11101-09700	Head Sub-Assy, Cylinder
11101	11101-39686	Head Sub-Assy, Cylinder
11101	90919-05060	Sensor, Cam Position
11101	15330-0T030	Valve Assy, Camshaft Timing Oil Control
11101	15330-0T040	Valve Assy, Camshaft Timing Oil Control
11101	90910-C2003	Bolt(For Cylinder Head Set)
11101	90201-C0002	Washer, Plate(For Cylinder Head Set)
11103	11107-37023	Housing Sub-Assy, Camshaft
11103	11107-37024	Housing Sub-Assy, Camshaft
11114	90250-C0010	Pin, Straight
11115	11115-0T010	Gasket, Cylinder Head
11117	90341-20002	Plug, W/head Taper Screw, No.1
11117	90430-20004	Gasket(For Cylinder Head Screw Plug)
11117	90430-C0001	Gasket(For Cylinder Head Screw Plug)
11122	11122-31050	Bush, Intake Valve Guide
11122	11123-31050	Bush, Intake Valve Guide
11126	11126-31030	Bush, Exhaust Valve Guide
11126	11127-31030	Bush, Exhaust Valve Guide
11131	11131-0T040	Seat, Intake Valve
11131	11131-37040	Seat, Intake Valve
11131	11132-37040	Seat, Intake Valve
11135	11135-0T040	Seat, Exhaust Valve
11135	11135-37020	Seat, Exhaust Valve
11135	11135-37040	Seat, Exhaust Valve
11135	11136-37040	Seat, Exhaust Valve
11155	90253-C0002	Pin, Ring
11159	11159-0T030	Gasket, Camshaft Bearing Cap Oil Hole
11186	11186-37010	Gasket, Camshaft Housing Rear Cover
11193	11193-0T030	Gasket, Spark Plug Tube
11193	11193-37020	Gasket, Spark Plug Tube
11201	11201-0T110	Cover Sub-Assy, Cylinder Head
11201	90210-C0002	Washer, Seal(For Cylinder Head Cover)
11201	90105-C0222	Bolt(For Cylinder Head Cover)
11212	11212-0T050	Cover, Cylinder Head, No.2
11213	11213-0T011	Gasket, Cylinder Head Cover
12108	12180-0T010	Cap Sub-Assy, Oil Filler
12108	90430-35001	Gasket(For Oil Filler Cap)
12281	12281-0T020	Hanger, Engine, No.1
12281	12281-37021	Hanger, Engine, No.1
12282	12282-0T020	Hanger, Engine, No.2
12282	12282-37011	Hanger, Engine, No.2
12551	12551-0T020	Bracket, Vacuum Pump, No.1
15678	15678-0T020	Filter, Oil Control Valve
90105	90105-C0043	New Genuine Part
90105	90105-C0081	New Genuine Part
90105	90105-C0087	New Genuine Part
90105	90105-C0097	New Genuine Part
90105	90105-C0167	Bolt(For Camshaft Housing Set)
90109	90109-C0017	Joint, Engine Cover
90119	90119-C0098	New Genuine Part
90119	90119-C0005	New Genuine Part
90301	90301-C0032	New Genuine Part
90430	90430-C0006	Gasket, Camshaft Bearing Cap Oil Hole
9006814032	90068-14032	Ring, O(For Cam Timing Oil Control Valve)
9025311006	90253-11006	Pin, Ring

OEM	Part name	Category
11101-09700	Head Sub-Assy, Cylinder	Cylinder Head ([07.2016 - ] (1607- ))
11101-39686	Head Sub-Assy, Cylinder	Cylinder Head ([07.2016 - ] (1607- ))
11107-37023	Housing Sub-Assy, Camshaft	Cylinder Head ([07.2016 - ] (1607- ))
11107-37024	Housing Sub-Assy, Camshaft	Cylinder Head ([07.2016 - ] (1607- ))
11115-0T010	Gasket, Cylinder Head	Cylinder Head ([07.2016 - ] (1607- ))
11122-31050	Bush, Intake Valve Guide	Cylinder Head ([07.2016 - ] (1607- ))
11123-31050	Bush, Intake Valve Guide	Cylinder Head ([07.2016 - ] (1607- ))
11126-31030	Bush, Exhaust Valve Guide	Cylinder Head ([07.2016 - ] (1607- ))
11127-31030	Bush, Exhaust Valve Guide	Cylinder Head ([07.2016 - ] (1607- ))
11131-0T040	Seat, Intake Valve	Cylinder Head ([07.2016 - ] (1607- ))
11131-37040	Seat, Intake Valve	Cylinder Head ([07.2016 - ] (1607- ))
11132-37040	Seat, Intake Valve	Cylinder Head ([07.2016 - ] (1607- ))
11135-0T040	Seat, Exhaust Valve	Cylinder Head ([07.2016 - ] (1607- ))
11135-37020	Seat, Exhaust Valve	Cylinder Head ([07.2016 - ] (1607- ))
11135-37040	Seat, Exhaust Valve	Cylinder Head ([07.2016 - ] (1607- ))
11136-37040	Seat, Exhaust Valve	Cylinder Head ([07.2016 - ] (1607- ))
11159-0T030	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([07.2016 - ] (1607- ))
11186-37010	Gasket, Camshaft Housing Rear Cover	Cylinder Head ([07.2016 - ] (1607- ))
11193-0T030	Gasket, Spark Plug Tube	Cylinder Head ([07.2016 - ] (1607- ))
11193-37020	Gasket, Spark Plug Tube	Cylinder Head ([07.2016 - ] (1607- ))
11201-0T110	Cover Sub-Assy, Cylinder Head	Cylinder Head ([07.2016 - ] (1607- ))
11212-0T050	Cover, Cylinder Head, No.2	Cylinder Head ([07.2016 - ] (1607- ))
11213-0T011	Gasket, Cylinder Head Cover	Cylinder Head ([07.2016 - ] (1607- ))
12180-0T010	Cap Sub-Assy, Oil Filler	Cylinder Head ([07.2016 - ] (1607- ))
12281-0T020	Hanger, Engine, No.1	Cylinder Head ([07.2016 - ] (1607- ))
12281-37021	Hanger, Engine, No.1	Cylinder Head ([07.2016 - ] (1607- ))
12282-0T020	Hanger, Engine, No.2	Cylinder Head ([07.2016 - ] (1607- ))
12282-37011	Hanger, Engine, No.2	Cylinder Head ([07.2016 - ] (1607- ))
12551-0T020	Bracket, Vacuum Pump, No.1	Cylinder Head ([07.2016 - ] (1607- ))
15330-0T030	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2016 - ] (1607- ))
15330-0T040	Valve Assy, Camshaft Timing Oil Control	Cylinder Head ([07.2016 - ] (1607- ))
15678-0T020	Filter, Oil Control Valve	Cylinder Head ([07.2016 - ] (1607- ))
90068-14032	Ring, O(For Cam Timing Oil Control Valve)	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0043	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0081	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0087	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0097	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0167	Bolt(For Camshaft Housing Set)	Cylinder Head ([07.2016 - ] (1607- ))
90105-C0222	Bolt(For Cylinder Head Cover)	Cylinder Head ([07.2016 - ] (1607- ))
90109-C0017	Joint, Engine Cover	Cylinder Head ([07.2016 - ] (1607- ))
90119-C0005	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90119-C0098	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90201-C0002	Washer, Plate(For Cylinder Head Set)	Cylinder Head ([07.2016 - ] (1607- ))
90210-C0002	Washer, Seal(For Cylinder Head Cover)	Cylinder Head ([07.2016 - ] (1607- ))
90250-C0010	Pin, Straight	Cylinder Head ([07.2016 - ] (1607- ))
90253-11006	Pin, Ring	Cylinder Head ([07.2016 - ] (1607- ))
90253-C0002	Pin, Ring	Cylinder Head ([07.2016 - ] (1607- ))
90301-C0032	New Genuine Part	Cylinder Head ([07.2016 - ] (1607- ))
90341-20002	Plug, W/head Taper Screw, No.1	Cylinder Head ([07.2016 - ] (1607- ))
90430-20004	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2016 - ] (1607- ))
90430-35001	Gasket(For Oil Filler Cap)	Cylinder Head ([07.2016 - ] (1607- ))
90430-C0001	Gasket(For Cylinder Head Screw Plug)	Cylinder Head ([07.2016 - ] (1607- ))
90430-C0006	Gasket, Camshaft Bearing Cap Oil Hole	Cylinder Head ([07.2016 - ] (1607- ))
90910-C2003	Bolt(For Cylinder Head Set)	Cylinder Head ([07.2016 - ] (1607- ))
90919-05060	Sensor, Cam Position	Cylinder Head ([07.2016 - ] (1607- ))
