Search › Model › ZSA42
ZSA42

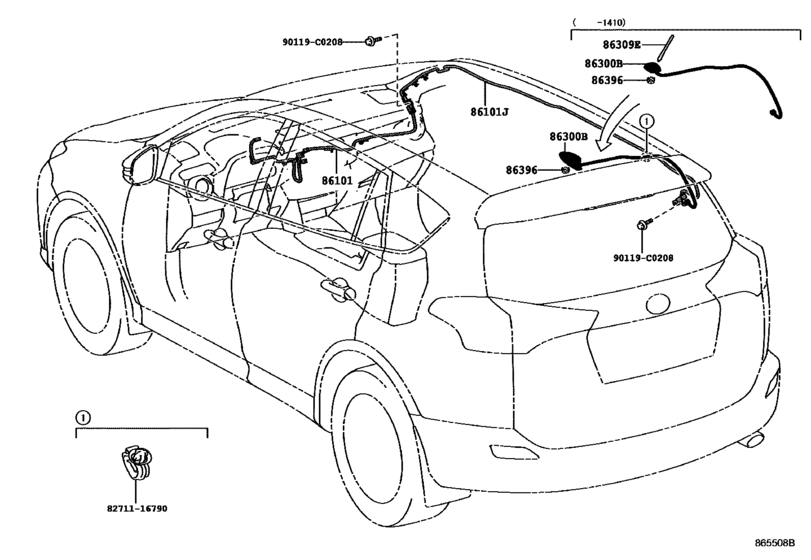

Antenna ([08.2013 - ] (1308- )) 12
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-0R320 | Cord Sub-Assy, Antenna |
| 86101 | 86101-0R300 | Cord Sub-Assy, Antenna, No.2 |
| 86300 | 86300-0R060-A0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-C0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-D1 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-E0 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-E1 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-E2 | Antenna Assy, Amplifier, No.1 |
| 86300 | 86300-0R060-J0 | Antenna Assy, Amplifier, No.1 |
| 86396 | 86396-47010 | Nut, Antenna |
| 90119 | 90119-C0208 | New Genuine Part |
| 8271116790 | 82711-16790 | Clamp, Wiring Harness |
| OEM | Part name | Category |
|---|---|---|
| 82711-16790 | Clamp, Wiring Harness | Antenna ([08.2013 - ] (1308- )) |
| 86101-0R300 | Cord Sub-Assy, Antenna, No.2 | Antenna ([08.2013 - ] (1308- )) |
| 86101-0R320 | Cord Sub-Assy, Antenna | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-A0 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-C0 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-D1 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-E0 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-E1 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-E2 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86300-0R060-J0 | Antenna Assy, Amplifier, No.1 | Antenna ([08.2013 - ] (1308- )) |
| 86396-47010 | Nut, Antenna | Antenna ([08.2013 - ] (1308- )) |
| 90119-C0208 | New Genuine Part | Antenna ([08.2013 - ] (1308- )) |
