Search › Model › ZSA30

ZSA30

Toyota RAV4-VANGUARD · 2008 · 3,934 parts · 194 categories

3,934 items

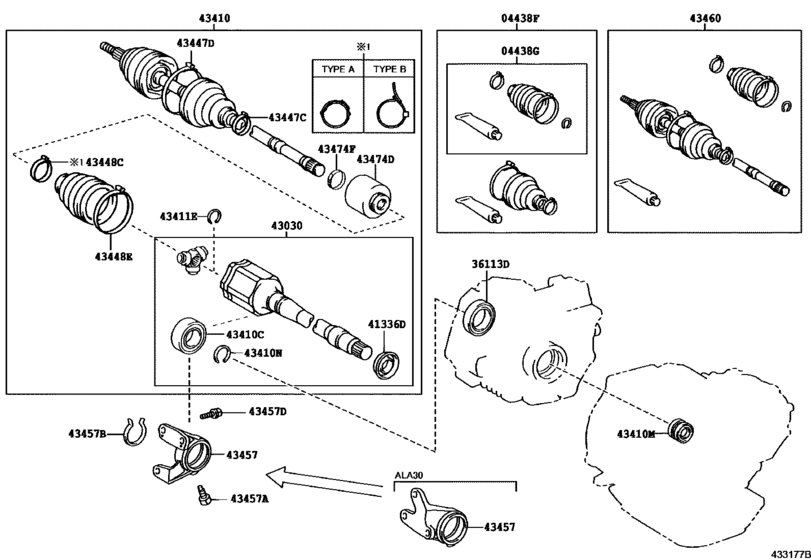

Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30) 24

#	OEM	Part name
4438	04427-44040	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04427-44041	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42180	Boot Kit, Front Drive Shaft Inboard Joint
36113	90311-35056	Seal, Oil (For Transfer Case Rh)
41336	41336-52020	Cover, Front Drive Shaft Dust, Rh
43030	43030-42050	Joint Assy, Front Drive Inboard, Rh
43410	43410-42230	Shaft Assy, Front Drive, Rh
43410	90363-36006	Bearing (For Front Drive Shaft)
43410	90316-28003	Oil Seal, Front Drive Shaft, Rh
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43411	43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)
43447	42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small
43447	42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big
43448	42345-42010	Clamp (For Axle Inboard Joint Boot) - Small
43448	90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)
43448	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43457	43457-42110	Bracket, Drive Shaft Bearing
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)
43457	90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43460	43470-49835	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49836	Shaft Assy, Front Drive Outboard Joint, Rh
43474	43474-48030	Damper, Front Drive Shaft, Rh
43474	42345-14010	Clamp, Rear Drive Shaft Boot

OEM	Part name	Category
04427-44040	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
04427-44041	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
04438-42180	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
41336-52020	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
42345-14010	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
42345-42010	Clamp (For Axle Inboard Joint Boot) - Small	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
42345-42090	Clamp, No.2 (For Front Axle Outboard Joint Boot) - Big	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
42345-42100	Clamp (For Front Axle Outboard Joint Boot) - Small	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43030-42050	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43410-42230	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43425-28010	Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43457-42110	Bracket, Drive Shaft Bearing	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43470-49835	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43470-49836	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
43474-48030	Damper, Front Drive Shaft, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90105-10381	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90311-35056	Seal, Oil (For Transfer Case Rh)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90316-28003	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90363-36006	Bearing (For Front Drive Shaft)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90521-75002	Ring, Hole Snap (For Drive Shaft Bearing Bracket)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)
90949-01559	Clamp, No.1 (For Axle Outboard Joint Boot Setting)	Front Drive Shaft ([11.2005 - ] RH (0511- )ACA30,31,33,ALA30,GSA33,ZSA30)

Source: Public OEM parts-catalog data
Variants: 2 / 32
Category: 194
Collected: 2026-08-02
