Search › Model › ZRT272
ZRT272

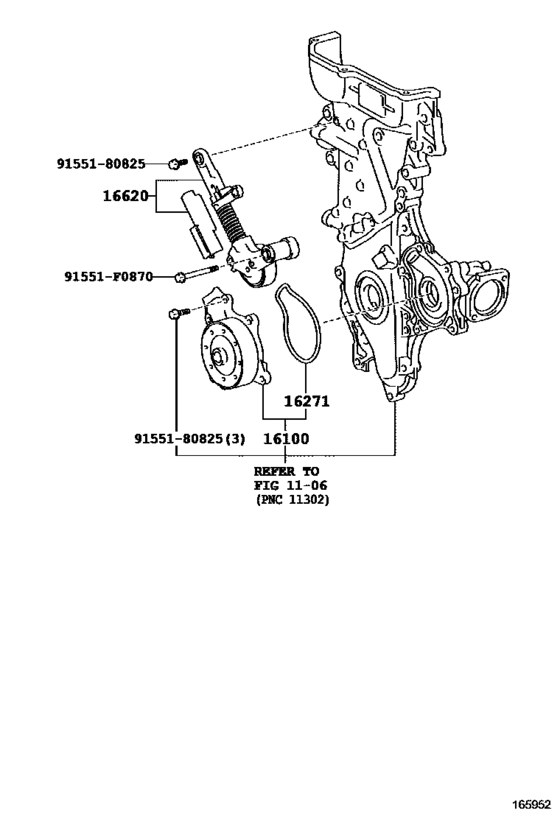

Water Pump ([05.2015 - ] (1505- )3ZRFAE) 8
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-39466 | Pump Assy, Engine Water |
| 16100 | 16100-39565 | Pump Assy, Engine Water |
| 16271 | 16271-37010 | Gasket, Water Pump |
| 16271 | 16271-37030 | Gasket, Water Pump |
| 16620 | 16620-37011 | Tensioner Assy, V-Ribbed Belt |
| 16620 | 16620-37030 | Tensioner Assy, V-Ribbed Belt |
| 91551 | 91551-F0870 | BOLT FLANGE |
| 9155180825 | 91551-80825 | Bolt(For Cylinder Head Set Sub) |
| OEM | Part name | Category |
|---|---|---|
| 16100-39466 | Pump Assy, Engine Water | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 16100-39565 | Pump Assy, Engine Water | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 16271-37010 | Gasket, Water Pump | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 16271-37030 | Gasket, Water Pump | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 16620-37011 | Tensioner Assy, V-Ribbed Belt | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 16620-37030 | Tensioner Assy, V-Ribbed Belt | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 91551-80825 | Bolt(For Cylinder Head Set Sub) | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
| 91551-F0870 | BOLT FLANGE | Water Pump ([05.2015 - ] (1505- )3ZRFAE) |
