ZRT272

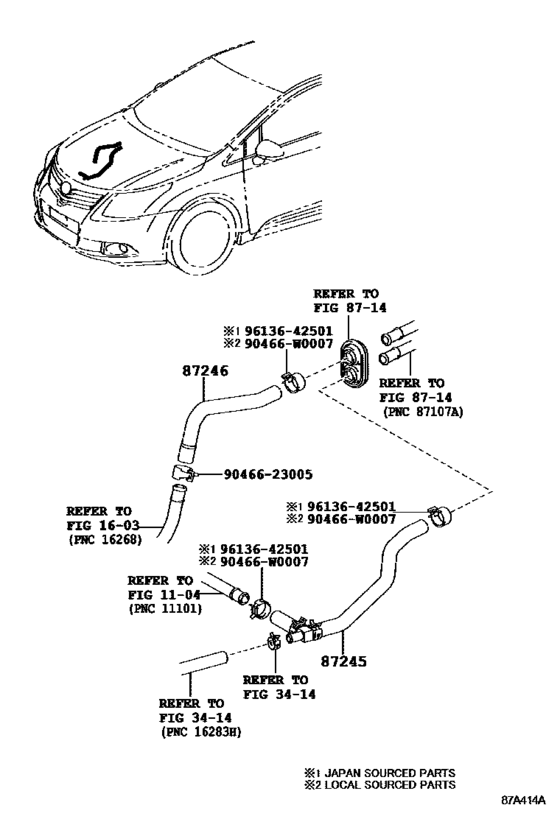

Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) 7
| # | OEM | Part name |
|---|---|---|
| 87245 | 87209-05050 | Hose, Heater Water, Inlet |
| 87245 | 87209-05051 | Hose, Heater Water, Inlet |
| 87245 | 87209-05080 | Hose, Heater Water, Inlet |
| 87246 | 87245-05690 | Hose, Heater Water, Outlet - HEATER WATER, INLET |
| 90466 | 90466-W0007 | Clip(For Water By-Pass Hose No.1) |
| 9046623005 | 90466-23005 | Clamp Or Clip(For Intercooler Cooling Water Hose No.3) |
| 9613642501 | 96136-42501 | Clip(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 87209-05050 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 87209-05051 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 87209-05080 | Hose, Heater Water, Inlet | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 87245-05690 | Hose, Heater Water, Outlet - HEATER WATER, INLET | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 90466-23005 | Clamp Or Clip(For Intercooler Cooling Water Hose No.3) | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 90466-W0007 | Clip(For Water By-Pass Hose No.1) | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
| 96136-42501 | Clip(For Ventilation Hose) | Heating & Air Conditioning - Water Piping ([07.2011 - ] (1107- )) |
