ZRT272

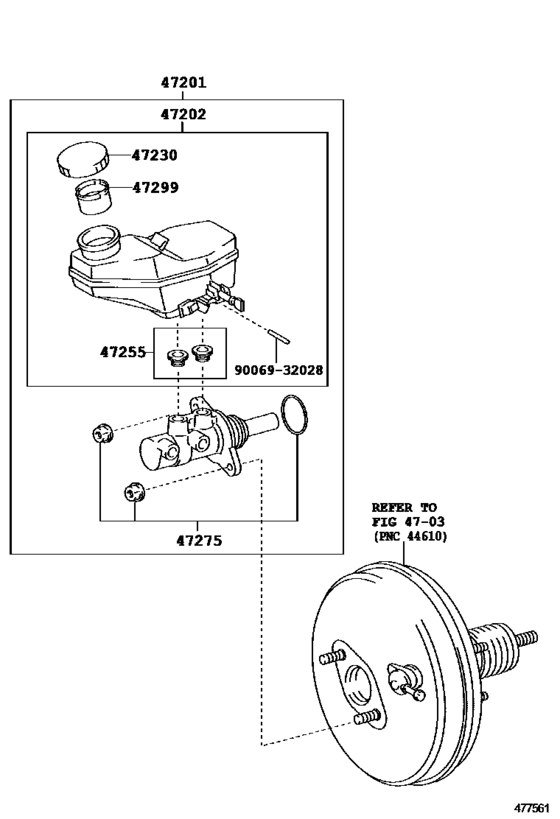

Brake Master Cylinder ([07.2011 - ] (1107- )) 7
| # | OEM | Part name |
|---|---|---|
| 47201 | 47201-09400 | Cylinder Sub-Assy, Brake Master |
| 47202 | 47220-09100 | Reservoir Sub-Assy, Brake Master Cylinder |
| 47230 | 47230-0D010 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | 47255-09040 | Grommet, Master Cylinder Reservoir |
| 47275 | 47275-09010 | Gasket, Brake Master Cylinder |
| 47299 | 47299-02160 | Strainer, Brake Master Cylinder Reservoir |
| 9006932028 | 90069-32028 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 47201-09400 | Cylinder Sub-Assy, Brake Master | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 47220-09100 | Reservoir Sub-Assy, Brake Master Cylinder | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 47230-0D010 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 47255-09040 | Grommet, Master Cylinder Reservoir | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 47275-09010 | Gasket, Brake Master Cylinder | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 47299-02160 | Strainer, Brake Master Cylinder Reservoir | Brake Master Cylinder ([07.2011 - ] (1107- )) |
| 90069-32028 | New Genuine Part | Brake Master Cylinder ([07.2011 - ] (1107- )) |
