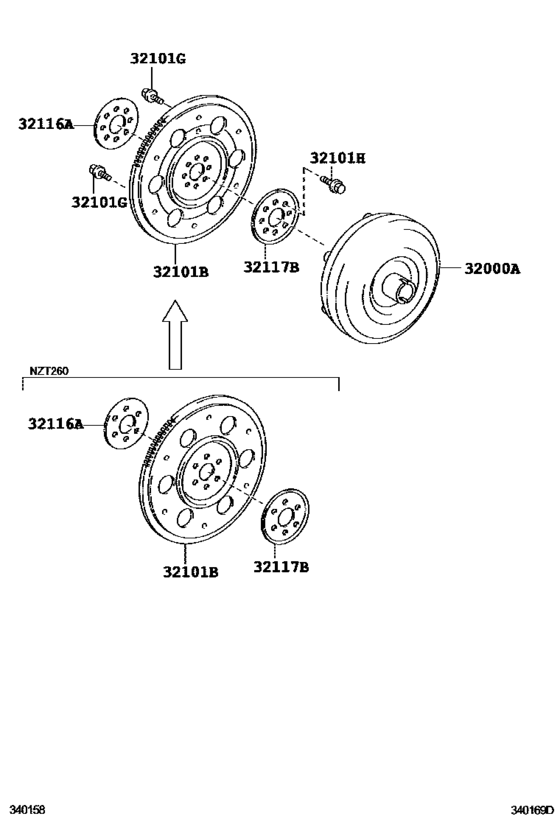

| 32000-12400 |
Converter Assy, Torque |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 32101-12100 |
Gear Sub-Assy, Drive Plate & Ring |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 32116-12030 |
Spacer, Drive Plate, Front |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 32117-12040 |
Spacer, Drive Plate, Rear |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 90105-10048 |
Bolt, Flywheel Setting |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 90109-08113 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
| 90119-08498 |
Bolt(For Drive Plate & Torque Converter Setting) |
Torque Converter, Front Oil Pump(Cvt) ([12.2012 - ] K111,K310,K311,K311F (0705-1212) ; (1212- )ZRT26#) |
