Search › Model › ZRT265

ZRT265

Toyota PREMIO-ALLION · 2007 · 5,317 parts · 231 categories
ZRT265 ×

← Back to categories

5,317 items

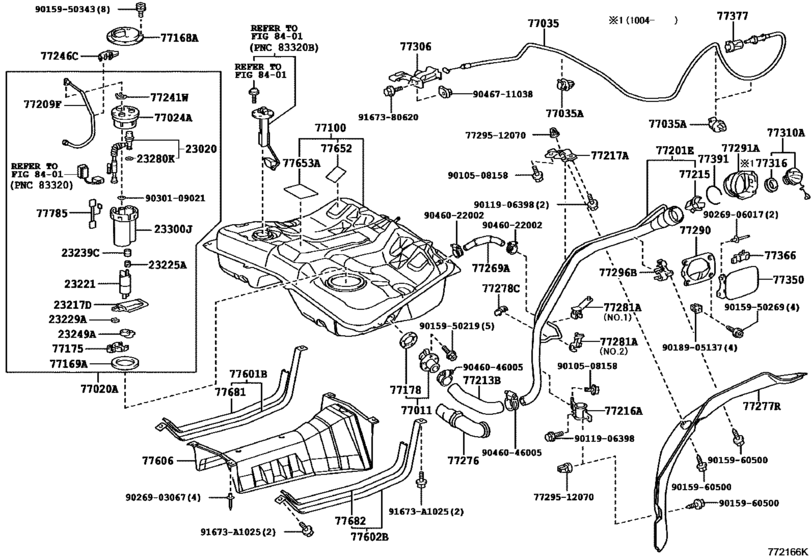

Fuel Tank & Tube ([05.2007 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0705- )ZRT265) 76
#OEMPart name
23020 23020-28010 Regulator Assy, Fuel Pressure W/jet Pump
23217 23217-0D070 Filter, Fuel Pump
23217 23217-28250 Filter, Fuel Pump
23221 23221-28290 Pump Assy, Fuel
23225 23225-21010 Spacer, Fuel Pump
23229 23229-16010 Clip(For Fuel Pump Filter)
23229 23219-03010 Clip(For Fuel Pump Filter)
23239 23239-21010 Seal, Fuel Pump Filter
23249 23249-74610 Rubber, Cushion(For Fuel Pump)
23280 90301-07041 Ring, O(For Fuel Pressure Regulator)
23300 23300-28040 Filter Assy, Fuel
77011 77011-63010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77020 77020-20241 Tube Assy, Fuel Suction W/pump & Gage
77020 77020-20290 Tube Assy, Fuel Suction W/pump & Gage
77024 77024-42020 Plate Sub-Assy, Fuel Suction
77035 77035-20520 Cable Sub-Assy, Fuel Lid Lock Control
77035 90469-06005 Clamp(For Hood Lock Control Cable)
77100 77001-20820 Tank Assy, Fuel
77168 77168-52010 Plate, Fuel Tank Vent Tube Set
77169 77169-33020 Gasket, Fuel Pump Bracket
77175 77175-52020 Support, Fuel Suction, No.2
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77201 77201-63020 Pipe Sub-Assy, Fuel Tank Filler
77209 77209-32030 Tube Sub-Assy, Fuel Tank Main
77213 77213-63010 Hose, Fuel Tank To Filler Pipe
77215 77215-51010 Plate, Fuel Tank Filler Pipe Flange
77216 77216-32060 Support, Fuel Tank Filler Pipe, No.1
77217 77217-32050 Support, Fuel Tank Filler Pipe, No.2
77241 77241-32060 Clip, Tube Joint
77246 77246-21010 Support, Fuel Main Tube
77269 77269-32010 Hose, Fuel Tank Breather
77276 77276-12050 Protector, Fuel Hose
77276 77276-12120 Protector, Fuel Hose
77276 77276-12130 Protector, Fuel Hose
77277 77277-32080 Protector, Fuel Tank Filler Pipe
77278 77278-13020 Protector, Fuel Tank Filler Pipe, No.2
77281 77281-12070 Clamp, Fuel Filler Pipe
77281 77281-13010 Bracket, Fuel Main Tube, No.1
77290 77290-20180 Shield Assy, Fuel Tank Filler Pipe
77291 77291-20170 Shield, Fuel Tank Filler Pipe
77296 77296-32020 Support, Fuel Tube Protector, No.1
77296 77296-32021 Support, Fuel Tube Protector, No.1
77306 64606-20180 Lever Sub-Assy, Luggage Door Lock Open
77310 77300-52030 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77350 77350-20330 Lid Assy, Fuel Filler Opening
77366 77360-30080 Spring Assy, Fuel Filler Opening Lid
77377 77377-12050 Bracket, Fuel Lid Lock Control
77391 77391-12020 Ring, Fuel Inlet Box
77601 77601-20290 Band Sub-Assy, Fuel Tank, No.1 Rh
77601 77601-32110 Band Sub-Assy, Fuel Tank, No.1
77606 77606-32040 Protector Sub-Assy, Fuel Tank, No.1
77606 77606-32041 Protector Sub-Assy, Fuel Tank, No.1
77652 77651-20090 Cushion, Fuel Tank, No.1
77653 77653-60060 Cushion, Fuel Tank, No.3
77681 77681-12070 Seat, Fuel Tank Band, Rh
77681 77681-21020 Seat, Fuel Tank Band, Rh
77785 77785-32010 Harness, Fuel Pump
91673 91673-A1025 New Genuine Part
7729512070 77295-12070 Grommet, Fuel Tube
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011906398 90119-06398 BOLT WWASHER
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950269 90159-50269 SCREW WWASHER
9015950343 90159-50343 SCREW, W-WASHER
9015960500 90159-60500 SCREW WWASHER
9018905137 90189-05137 GROMMET SCREW
9026903067 90269-03067 RIVET
9026906017 90269-06017 RIVET
9030109021 90301-09021 GASKET
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046711038 90467-11038 CLAMP
9167380620 91673-80620 Bolt
