Search › Model › ZRT260

ZRT260

Toyota PREMIO-ALLION · 2007 · 4,857 parts · 224 categories

4,857 items

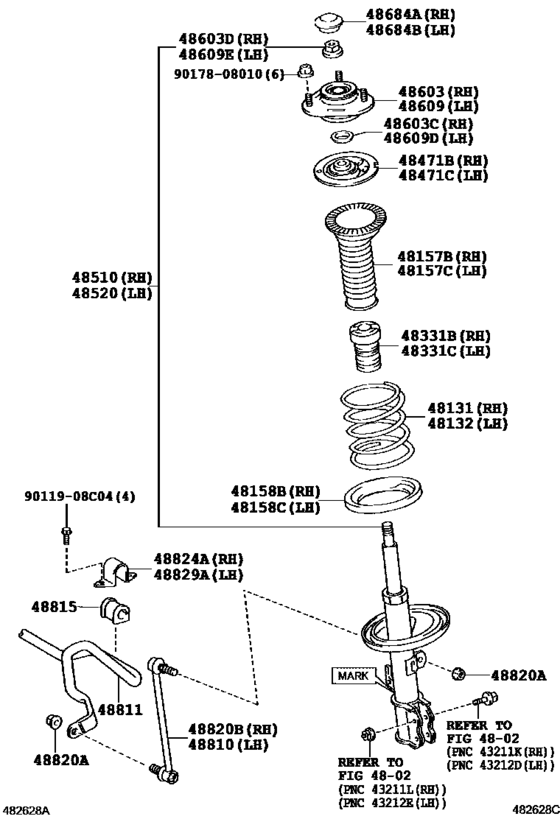

Front Spring & Shock Absorber ([05.2007 - ] (0705- )) 21

#	OEM	Part name
48131	48131-12B40	Spring, Front Coil, Rh
48131	48131-1N540	Spring, Front Coil, Rh
48157	48157-12080	Insulator, Front Coil Spring, Upper
48158	48158-47010	Insulator, Front Coil Spring, Lower Rh
48331	48331-63020	Bumper, Front Spring, Rh
48471	48044-12110	Seat, Front Coil Spring, Upper Rh
48510	48510-80519	Absorber Assy, Shock, Front Rh
48510	48510-80841	Absorber Assy, Shock, Front Rh
48520	48520-80249	Absorber Assy, Shock, Front Lh
48520	48520-80514	Absorber Assy, Shock, Front Lh
48603	48609-20500	Support Sub-Assy, Front Suspension, Rh
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48603	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-52010	Cover, Front Suspension Support Dust
48810	48820-47010	Link Assy, Front Stabilizer
48811	48811-2B100	Bar, Stabilizer, Front
48815	48815-20290	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)
48824	48824-20120	Bracket, Front Stabilizer, No.1 Rh
9011908	90119-08C04	BOLT WWASHER
9017808010	90178-08010	Nut(For Front Suspension Support)

OEM	Part name	Category
48044-12110	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48131-12B40	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48131-1N540	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48157-12080	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48158-47010	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48331-63020	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48510-80519	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48510-80841	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48520-80249	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48520-80514	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48609-20500	Support Sub-Assy, Front Suspension, Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48684-52010	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48811-2B100	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48815-20290	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48820-47010	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
48824-20120	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
90119-08C04	BOLT WWASHER	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
90178-08010	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([05.2007 - ] (0705- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 224
Collected: 2026-08-04
