Search › Model › ZRT260

ZRT260

Toyota PREMIO-ALLION · 2007 · 4,857 parts · 224 categories

4,857 items

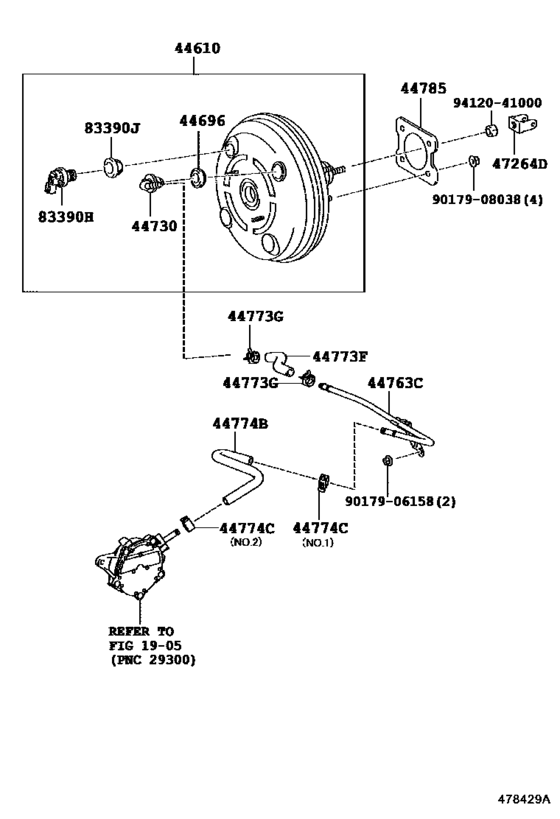

Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#) 20

#	OEM	Part name
44610	44610-20A11	Booster Assy, Brake
44610	44610-20A21	Booster Assy, Brake
44610	44610-20A50	Booster Assy, Brake
44696	90480-24439	Grommet, Check Valve
44730	44730-20170	Valve Assy, Vacuum Check(For Brake)
44763	44763-12460	Tube, Hose To Hose, No.2
44763	44763-68020	Tube, Hose To Hose, No.2
44773	44773-12820	Hose, Union To Check Valve
44773	90467-16014	Clip(For Vacuum Hose)
44773	96133-41500	Clamp Or Clip(For Air Hose, No.5)
44774	44774-12650	Hose, Union To Connector Tube
44774	44774-68020	Hose, Union To Connector Tube
44785	44785-12040	Gasket, Brake Booster
47264	47264-63020	Clevis, Master Cylinder Push Rod
47264	47264-68010	Clevis, Master Cylinder Push Rod
83390	83390-28120	Switch Assy, Vacuum Warning
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908038	90179-08038	Nut
9412041000	94120-41000	Nut(For Clutch Pedal Stopper)
9412041000	90170-A0002	Nut

OEM	Part name	Category
44610-20A11	Booster Assy, Brake	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44610-20A21	Booster Assy, Brake	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44610-20A50	Booster Assy, Brake	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44730-20170	Valve Assy, Vacuum Check(For Brake)	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44763-12460	Tube, Hose To Hose, No.2	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44763-68020	Tube, Hose To Hose, No.2	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44773-12820	Hose, Union To Check Valve	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44774-12650	Hose, Union To Connector Tube	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44774-68020	Hose, Union To Connector Tube	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
44785-12040	Gasket, Brake Booster	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
47264-63020	Clevis, Master Cylinder Push Rod	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
47264-68010	Clevis, Master Cylinder Push Rod	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
83390-28120	Switch Assy, Vacuum Warning	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
90170-A0002	Nut	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
90179-08038	Nut	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
90467-16014	Clip(For Vacuum Hose)	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
90480-24439	Grommet, Check Valve	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
94120-41000	Nut(For Clutch Pedal Stopper)	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)
96133-41500	Clamp Or Clip(For Air Hose, No.5)	Brake Booster & Vacuum Tube ([12.2012 - ] (1212- )ZRT26#)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 224
Collected: 2026-08-04
