ZRR85

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,993 parts · 223 categories

← Back to categories

3,993 items

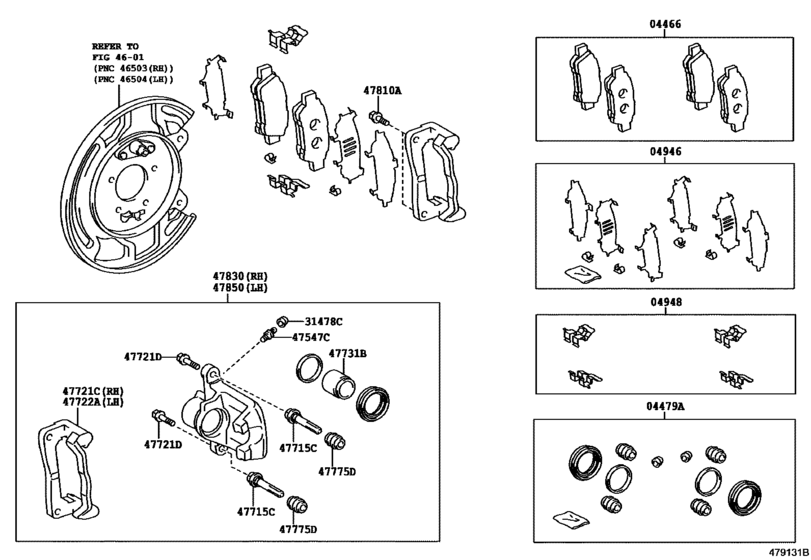

Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU) 15

#	OEM	Part name
4466	04466-28120	Pad Kit, Disc Brake, Rear
4479	04479-28200	Cylinder Kit, Disc Brake, Rear
4946	04946-28030	Shim Kit, Anti Squeal(For Rear Disc Brake)
4948	04948-28030	Fitting Kit, Disc Brake, Rear
31478	31478-30010	Bleeder Plug Cap
47547	47547-20010	Plug, Bleeder(For Release Cylinder)
47715	47715-52010	Pin, Front Disc Brake Cylinder Slide
47721	47721-28020	Mounting, Rear Disc Brake Cylinder, Rh
47721	90105-08164	Bolt(For Front Disc Brake Cylinder Slide)
47722	47722-28010	Mounting, Rear Disc Brake Cylinder, Lh
47731	47731-28090	Piston, Rear Disc Brake
47775	47775-02130	Boot, Bush Dust(For Front Disc Brake)
47810	90119-12185	Bolt, Hexagon(For Rear Caliper)
47830	47830-28080	Cylinder Assy, Disc Brake, Rear Rh
47850	47850-28080	Cylinder Assy, Disc Brake, Rear Lh

OEM	Part name	Category
04466-28120	Pad Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
04479-28200	Cylinder Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
04946-28030	Shim Kit, Anti Squeal(For Rear Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
04948-28030	Fitting Kit, Disc Brake, Rear	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
31478-30010	Bleeder Plug Cap	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47547-20010	Plug, Bleeder(For Release Cylinder)	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47715-52010	Pin, Front Disc Brake Cylinder Slide	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47721-28020	Mounting, Rear Disc Brake Cylinder, Rh	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47722-28010	Mounting, Rear Disc Brake Cylinder, Lh	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47731-28090	Piston, Rear Disc Brake	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47775-02130	Boot, Bush Dust(For Front Disc Brake)	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47830-28080	Cylinder Assy, Disc Brake, Rear Rh	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
47850-28080	Cylinder Assy, Disc Brake, Rear Lh	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
90105-08164	Bolt(For Front Disc Brake Cylinder Slide)	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
90119-12185	Bolt, Hexagon(For Rear Caliper)	Rear Disc Brake Caliper & Dust Cover ([01.2014 - ] (1401- )ZRR80..IV5 ; (1401- )ZRR85,ZWR80 ; (1401- )ZRR80..SI,ZS..CBU)
