ZRR85

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,993 parts · 223 categories
ZRR85 ×

← Back to categories

3,993 items

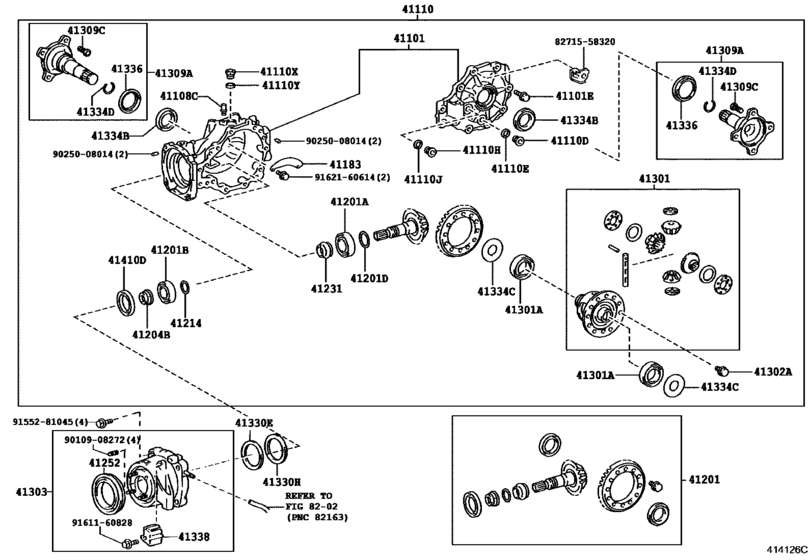

Rear Axle Housing & Differential ([01.2014 - ] ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ ｷｬﾘｱ (1401- )ZRR85) 103
#OEMPart name
41101 41101-45021 Carrier Sub-Assy, Differential, Rear
41101 90105-10371 Bolt (For Rear Differential Carrier)
41108 90930-03075 Plug, Breather
41110 41110-45011 Carrier Assy, Differential, Rear
41110 90341-18051 Plug, Drain(Hv)
41110 12157-10010 Gasket (For Drain Plug)
41110 90341-18023 Plug, W/head Straight Screw, No.1
41110 90341-18034 Plug, No.1 (For Transfer Case)
41183 41183-48010 Deflector, Rear Differential Breather Plug Oil
41201 41201-49165 Final Gear Kit, Differential, Rear
41201 90366-35154 Bearing (For Rear Drive Pinion Rear)
41201 90366-30099 Bearing (For Rear Drive Pinion Front)
41201 90564-35041 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35043 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35045 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35047 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35049 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35051 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35053 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35055 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35057 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35059 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35061 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35063 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35065 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35071 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35073 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35075 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35077 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35079 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35081 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35083 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35085 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35087 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35089 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35091 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35093 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35095 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35165 Washer, Plate (For Rear Differential Drive Pinion)
41201 90564-35167 Washer, Plate (For Rear Differential Drive Pinion)
41204 90178-30001 Nut (For Rear Drive Pinion)
41214 90560-30012 Slinger, Rear Differential Drive Pinion Oil
41231 41231-33030 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-42013 Deflector, Dust (For Rear Differential)
41301 41301-48060 Case Sub-Assy, Rear Differential
41301 90366-38048 Bearing(For Rear Differential Case)
41302 90105-11060 Bolt (For Transfer Ring Gear)
41303 41303-28013 Coupling Sub-Assy, Electro Magnetic Control
41309 41309-28050 Shaft Sub-Assy, Rear Differential Side Gear
41309 90114-10028 Bolt (For Rear Differential Side Gear Shaft)
41330 90208-74003 Washer, Conical Spring (For Transmission Coupling)
41330 90560-68002 Spacer (For Transmission Coupling)
41334 90311-42047 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90311-42062 SEAL TYPE T OIL
41334 90564-30075 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30076 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30077 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30078 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30079 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30080 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30081 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30082 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30083 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30084 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30085 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30086 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30088 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30089 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30090 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30091 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30092 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30093 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30094 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30095 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30096 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30097 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30098 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30099 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30100 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30101 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30102 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30103 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30104 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30105 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30106 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30107 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30108 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30109 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30110 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30111 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30112 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30113 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-30114 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)
41336 41336-28040 Cover, Dust(For Rear Differential Side Gear Shaft)
41338 41338-44010 Bracket, Connector Clamp
41410 90310-54003 Seal, Oil Diaphragm
8271558320 82715-58320 Bracket,wiring Harness Clamp
9010908272 90109-08272 BOLT
9025008014 90250-08014 Pin, Straight(For Timing Gear Cover Set)
9155281045 91552-81045 Bolt, No.1(For Alternator)
9161160828 91611-60828 Bolt(For Clutch Release Cylinder Setting)
9162160614 91621-60614 Bolt(For Transaxle & Engine Setting)
