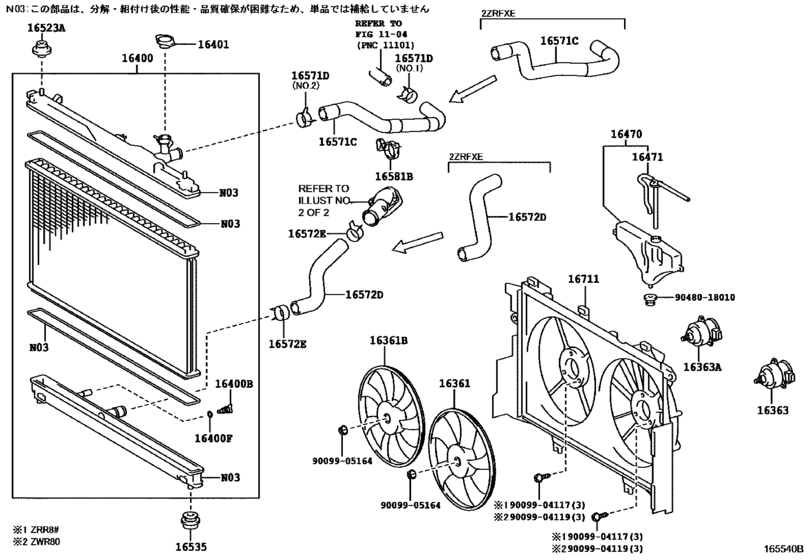

| 16361-28180 |
Fan, No.2 |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16361-28260 |
Fan |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16363-23010 |
Motor, Cooling Fan |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16400-37280 |
Radiator Assy |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16401-31520 |
Radiator Cap Sub-Assy (108kPa) |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16401-36020 |
Cap Sub-Assy, Radiator |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16405-37010 |
Cap Sub-Assy, Reserve Tank |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16417-21280 |
Cock Sub-Assy, Radiator Drain |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16470-37020 |
Tank Assy, Radiator Reserve |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16492-21050 |
Ring, O(For Oil Cooler Drain Cock) |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16523-20020 |
Cushion, Radiator Support |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16535-28030 |
Support, Radiator, Lower |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16571-37190 |
Hose, Radiator, No.1 |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16572-37170 |
Hose, Radiator, No.2 |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16581-37120 |
Clamp, Hose(For Radiator Hose) |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 16711-37120 |
Shroud, Fan |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 90099-04117 |
Bolt, Radiator Side Support Plate |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 90099-04119 |
BOLT WASHER HEAD |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 90099-05164 |
Nut |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 90480-18010 |
Grommet, Radiator Reserve Tank Hose |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 96136-43901 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
| 96136-44301 |
Clamp Or Clip, Hose(For Radiator Inlet) |
Radiator & Water Outlet ([01.2014 - ] (1401- )) |
