Search › Model › ZRR85

ZRR85

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,993 parts · 223 categories

← Back to categories

3,993 items

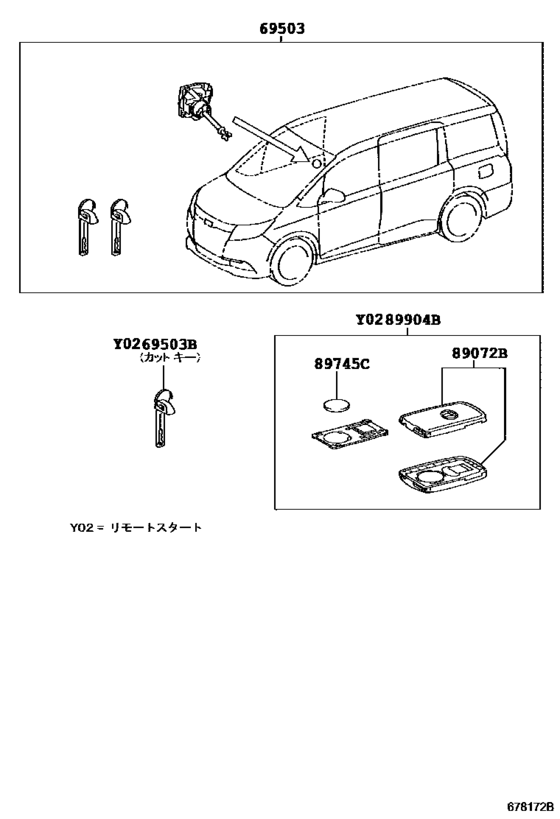

Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- )) 10

#	OEM	Part name
69503	69005-28D70	Cylinder Set, Lock
69503	69515-33090	Key, Cut
69503	69005-28D50	Cylinder Set, Lock
69503	69005-28D60	Cylinder Set, Lock
89072	89072-28600	Housing Set, Door Control Transmitter (For Smart Key)
89072	89072-28590	Housing Set, Door Control Transmitter (For Smart Key)
89745	89745-45010	Battery, Transmitter
89745	89745-50020	Battery, Transmitter
89904	89904-28561	Transmitter Sub-Assy, Electrical Key
89904	89904-28541	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-28D50	Cylinder Set, Lock	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
69005-28D60	Cylinder Set, Lock	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
69005-28D70	Cylinder Set, Lock	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
69515-33090	Key, Cut	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89072-28590	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89072-28600	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89745-45010	Battery, Transmitter	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89745-50020	Battery, Transmitter	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89904-28541	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
89904-28561	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([01.2014 - ] ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ) (1401- ))
