Search › Model › ZRR85

ZRR85

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,993 parts · 223 categories

3,993 items

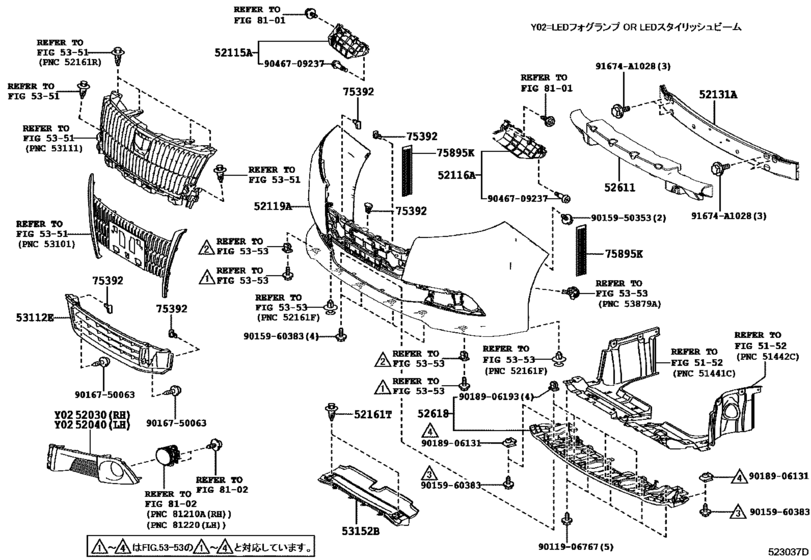

Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR) 67

#	OEM	Part name
52030	52030-28070-A0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-A0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-B0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-B0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-C0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-C0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-C1	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-C1	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-D0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-D0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-H0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-H0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28070-K0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28071-K0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28090-A0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28090-B0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28090-C0	Cover Assy, Front Bumper Hole, Rh
52030	52030-28090-C1	Cover Assy, Front Bumper Hole, Rh
52030	52030-28090-D0	Cover Assy, Front Bumper Hole, Rh
52040	52040-28070-A0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-A0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-B0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-B0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-C0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-C0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-C1	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-C1	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-D0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-D0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-H0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-H0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28070-K0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28071-K0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28090-A0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28090-B0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28090-C0	Cover Assy, Front Bumper Hole, Lh
52040	52040-28090-C1	Cover Assy, Front Bumper Hole, Lh
52040	52040-28090-D0	Cover Assy, Front Bumper Hole, Lh
52115	52115-28220	Support, Front Bumper Side, Rh
52116	52116-28090	Support, Front Bumper Side, Lh
52119	52119-28G70-A0	Cover, Front Bumper
52119	52119-28G70-B0	Cover, Front Bumper
52119	52119-28G70-B2	Cover, Front Bumper
52119	52119-28G70-C0	Cover, Front Bumper
52119	52119-28G70-C1	Cover, Front Bumper
52119	52119-28G70-D0	Cover, Front Bumper
52119	52119-28G70-H0	Cover, Front Bumper
52119	52119-28G70-K0	Cover, Front Bumper
52131	52131-28170	Reinforcement, Front Bumper
52161	52161-16010	Clip
52161	52161-0K040	Clip
52161	52161-02020	Clip
52611	52611-28110	Absorber, Front Bumper Energy
52618	52618-28030	Absorber, Front Bumper, Lower
53112	53112-28260	Grille, Radiator, Lower No.1
53152	53152-28040	Guide, Radiator Grille Air
75392	75392-35200	Retainer
75895	75895-28010	Tape, Moulding, No.2
91674	91674-A1028	BOLT FLANGE
9011906767	90119-06767	Bolt, W/washer(For Engine Under Cover)
9015950353	90159-50353	SCREW, W-WASHER
9015960383	90159-60383	SCREW WWASHER
9015960383	90159-A0010	SCREW WWASHER TAPP
9016750063	90167-50063	SCREW PAN TAPPING
9018906131	90189-06131	GROMMET SCREW
9018906193	90189-06193	Grommet(For Engine Under Cover)
9046709237	90467-09237	Clip, Rear Bumper Side

OEM	Part name	Category
52030-28070-A0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-B0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-C0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-C1	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-D0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-H0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28070-K0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-A0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-B0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-C0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-C1	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-D0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-H0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28071-K0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28090-A0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28090-B0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28090-C0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28090-C1	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52030-28090-D0	Cover Assy, Front Bumper Hole, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-A0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-B0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-C0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-C1	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-D0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-H0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28070-K0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-A0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-B0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-C0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-C1	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-D0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-H0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28071-K0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28090-A0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28090-B0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28090-C0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28090-C1	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52040-28090-D0	Cover Assy, Front Bumper Hole, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52115-28220	Support, Front Bumper Side, Rh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52116-28090	Support, Front Bumper Side, Lh	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-A0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-B0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-B2	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-C0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-C1	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-D0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-H0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52119-28G70-K0	Cover, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52131-28170	Reinforcement, Front Bumper	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52161-02020	Clip	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52161-0K040	Clip	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52161-16010	Clip	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52611-28110	Absorber, Front Bumper Energy	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
52618-28030	Absorber, Front Bumper, Lower	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
53112-28260	Grille, Radiator, Lower No.1	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
53152-28040	Guide, Radiator Grille Air	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
75392-35200	Retainer	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
75895-28010	Tape, Moulding, No.2	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90119-06767	Bolt, W/washer(For Engine Under Cover)	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90159-50353	SCREW, W-WASHER	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90159-60383	SCREW WWASHER	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90159-A0010	SCREW WWASHER TAPP	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90167-50063	SCREW PAN TAPPING	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90189-06131	GROMMET SCREW	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90189-06193	Grommet(For Engine Under Cover)	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
90467-09237	Clip, Rear Bumper Side	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)
91674-A1028	BOLT FLANGE	Front Bumper & Bumper Stay ([10.2014 - ] (1410- )ESQIR)

Source: Public OEM parts-catalog data
Variants: 2 / 22
Category: 223
Collected: 2026-08-04
