Search › Model › ZRR85

ZRR85

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,993 parts · 223 categories

3,993 items

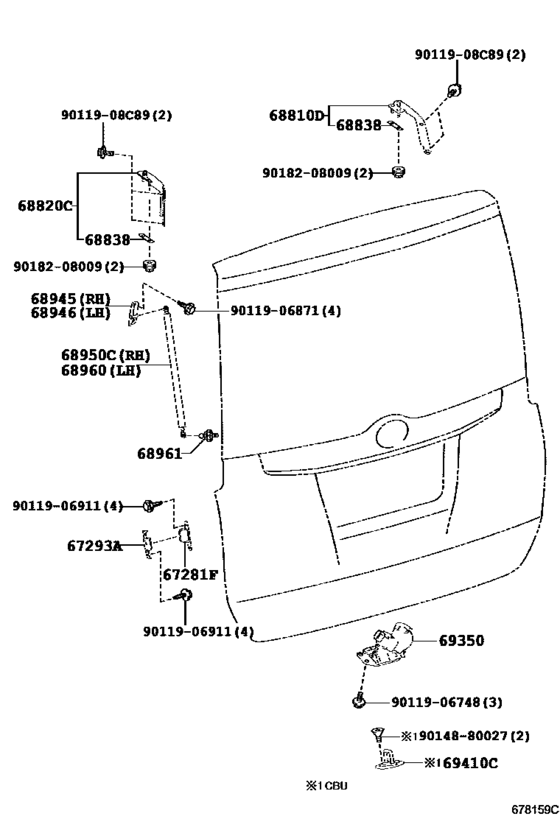

Back Door Lock & Hinge ([01.2014 - ] (1401- )) 25

#	OEM	Part name
67281	67281-28020	Stopper, Back Door, Lower
67293	67293-28040	Cushion, Back Door Stopper
68810	68810-28050	Hinge Assy, Back Door, Rh
68820	68820-28040	Hinge Assy, Back Door, Lh
68838	68838-28020	Pad, Back Door Hinge, No.1
68945	68945-28030	Bracket, Back Door Damper Stay, Upper Rh
68946	68946-28020	Bracket, Back Door Damper Stay, Upper Lh
68950	68950-0W600	Stay Assy, Back Door, Rh
68950	68950-0W890	Stay Assy, Back Door, Rh
68950	68950-0WF30	STAY ASSY, BACK DOOR, RH
68950	68945-28040	BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68960	68960-0W680	Stay Assy, Back Door, Lh
68960	68946-28030	Bracket, Back Door Damper Stay, Upper Lh
68960	68960-0W890	Stay Assy, Back Door, Lh
68960	68960-0WF20	STAY ASSY BACK
68961	68961-20140	Bolt, Back Door Stay
69350	69350-28170	Lock Assy, Back Door
69350	69350-58040	Lock Assy, Back Door
69410	69410-60030	Plate Assy, Front Door Lock Striker
9011908	90119-08C89	BOLT WWASHER
9011906748	90119-06748	BOLT WWASHER
9011906871	90119-06871	BOLT WWASHER
9011906911	90119-06911	BOLT WWASHER
9014880027	90148-80027	Screw Hex Lobular
9018208009	90182-08009	NUT WWASHER

OEM	Part name	Category
67281-28020	Stopper, Back Door, Lower	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
67293-28040	Cushion, Back Door Stopper	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68810-28050	Hinge Assy, Back Door, Rh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68820-28040	Hinge Assy, Back Door, Lh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68838-28020	Pad, Back Door Hinge, No.1	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68945-28030	Bracket, Back Door Damper Stay, Upper Rh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68945-28040	BRACKET, BACK DOOR DAMPER STAY, UPPER RH	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68946-28020	Bracket, Back Door Damper Stay, Upper Lh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68946-28030	Bracket, Back Door Damper Stay, Upper Lh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68950-0W600	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68950-0W890	Stay Assy, Back Door, Rh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68950-0WF30	STAY ASSY, BACK DOOR, RH	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68960-0W680	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68960-0W890	Stay Assy, Back Door, Lh	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68960-0WF20	STAY ASSY BACK	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
68961-20140	Bolt, Back Door Stay	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
69350-28170	Lock Assy, Back Door	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
69350-58040	Lock Assy, Back Door	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
69410-60030	Plate Assy, Front Door Lock Striker	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90119-06748	BOLT WWASHER	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90119-06871	BOLT WWASHER	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90119-06911	BOLT WWASHER	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90119-08C89	BOLT WWASHER	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90148-80027	Screw Hex Lobular	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
90182-08009	NUT WWASHER	Back Door Lock & Hinge ([01.2014 - ] (1401- ))
