ZRR80

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,305 parts · 181 categories
ZRR80 ×

← Back to categories

3,305 items

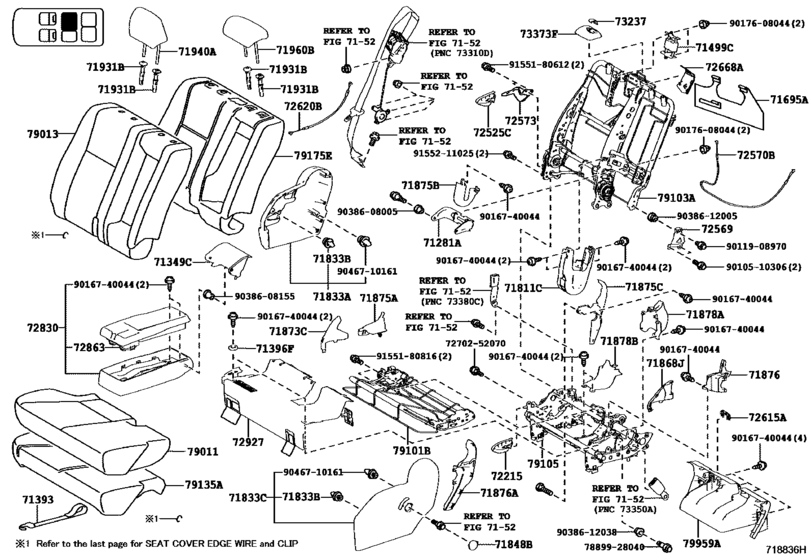

Seat & Seat Track ([01.2014 - ] REAR NO.1 SEAT(RH) (1401- )X) 71
#OEMPart name
71281 71281-28060 Hinge, Rear Seat Center Armrest
71349 71349-28060-A0 Cover, Rear Seat Back Hinge
71349 71349-28060-C0 Cover, Rear Seat Back Hinge
71393 71393-28080-C1 Band, Rear Seat Cushion
71396 71396-28030-B0 Cushion, Rear Seat Support, Rear
71499 71499-28080 Damper, Rear Seat Cushion Spring
71695 71695-28260 Protector, Rear Seat, No.1 Rh
71811 71801-28030-C0 Cover, Reclining Adjuster, Rh
71833 71833-28240-C0 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-28241-C0 Cover, Rear Seat Reclining, No.1 Rh
71833 71769-47020 Clip, Rear Seat Back Board
71833 71834-28280-C0 Cover, Rear Seat Reclining, No.2 Rh
71848 71848-28040-C0 Cap, Seat Adjuster Cover, Rh
71868 71868-28050-C0 Shield, Rear Seat Cushion, Inner No.1 Lh (For Rh Seat)
71873 71867-28060-C0 Shield, Rear Seat Cushion, Inner No.1 Rh(For Rh Seat)
71875 71875-28350-C0 Cover, Reclining Adjuster Inside, Rh
71875 71875-28360 Cover, Reclining Adjuster Inside, Rh
71875 71875-28370-C0 Cover, Reclining Adjuster Inside, Rh
71876 71876-28340-C0 Cover, Reclining Adjuster Inside, Lh
71876 71876-28350-C0 Cover, Reclining Adjuster Inside, Lh
71878 71878-28070-C0 Cover, Rear Seat Reclining, Inner Rh
71878 71879-28080-C0 Cover, Rear Seat Reclining, Inner Rh
71931 71930-44020-A0 Support, Front Seat Headrest
71931 71930-44020-C0 Support, Front Seat Headrest
71931 71931-47010-A0 Support, Front Seat Headrest
71931 71931-47010-C0 Support Assy, Rear Seat Legrest
71940 71940-28F00-A2 Headrest Assy, Rear Seat
71960 71960-28390-A1 Headrest Assy, Rear Seat, Center
72215 72215-28010-C0 Lever, Seat Track Handle Control, Rh
72525 72525-28140-C0 Handle, Reclining Adjuster Release, No.1 Rh
72569 72569-28040 Plate, Seat Back Stopper
72570 72570-28090 Cable Assy, Reclining Adjusting, Rh
72573 72573-28010 Lever, Reclining Control, Rh
72615 72615-28020-C0 Cover, Rear Seat Back Lock Striker, Rh
72620 72620-28150 Cable Assy, Rear No.1 Seat Lock
72668 72668-28020 Bezel, Rear Seat Back Lock, Lower
72830 72830-28C80-A1 Armrest Assy, Rear Seat, Center
72830 72830-28C80-C0 Armrest Assy, Rear Seat, Center
72863 72863-28010-A0 Box, Rear Seat Center Armrest
72863 72863-28010-C0 Box, Rear Seat Center Armrest
72927 72927-28100-C0 Cover, Rear Seat Cushion Under, Rh
73237 73237-28020-A3 Cover, Shoulder Belt Anchor
73237 73237-28020-C0 Cover, Shoulder Belt Anchor
73373 73375-28020-A3 Cover, Rear Seat Shoulder Belt Hole
73373 73375-28020-C0 Cover, Rear Seat Shoulder Belt Hole
79011 79011-28K50-A3 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-28K51-A5 Cover Sub-Assy, No.1 Seat Cushion, Rh
79011 79011-28K50-A4 Cover Sub-Assy, No.1 Seat Cushion, Rh
79013 79013-28L40-A2 Cover Sub-Assy, No.1 Seat Back, Rh
79013 79013-28L41-A3 Cover Sub-Assy, No.1 Seat Back, Rh
79101 79101-28200 Frame Sub-Assy, No.1 Seat Cushion, Rh
79103 79103-28370 Frame Sub-Assy, No.1 Seat Back, Rh
79103 79103-28420 Frame Sub-Assy, No.1 Seat Back, Rh
79105 79105-28440 Leg Sub-Assy, No.1 Seat, Rh
79135 79135-28510 Pad, No.1 Seat Cushion, Rh
79175 79175-28520 Pad, No.1 Seat Back, Rh
79959 73315-28080-C0 Cover, Rear Seat Leg, Rh
7270252070 72702-52070 Bracket Sub-assy, Rear Seat Back Striker
7889928040 78899-28040 Bolt, Front Seat
9010510306 90105-10306 Bolt, Flywheel Setting
9011908970 90119-08970 New Genuine Part
9016740044 90167-40044 BOLT
9017608044 90176-08044 NUT
9038608005 90386-08005 Bush (For Rear Seat Center Armrest)
9038608155 90386-08155 Bush (For Accelerator Pedal Rod)
9038612005 90386-12005 Bush (For Front Seat Hinge Pin)
9038612038 90386-12038 Bush (For Selecting Bellcrank No.1)
9046710161 90467-10161 Clip
9155180612 91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector)
9155180816 91551-80816 Bolt(For Manual Transmission Oil Separator)
9155211025 91552-11025 New Genuine Part
