Search › Model › ZRR80

ZRR80

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,305 parts · 181 categories

3,305 items

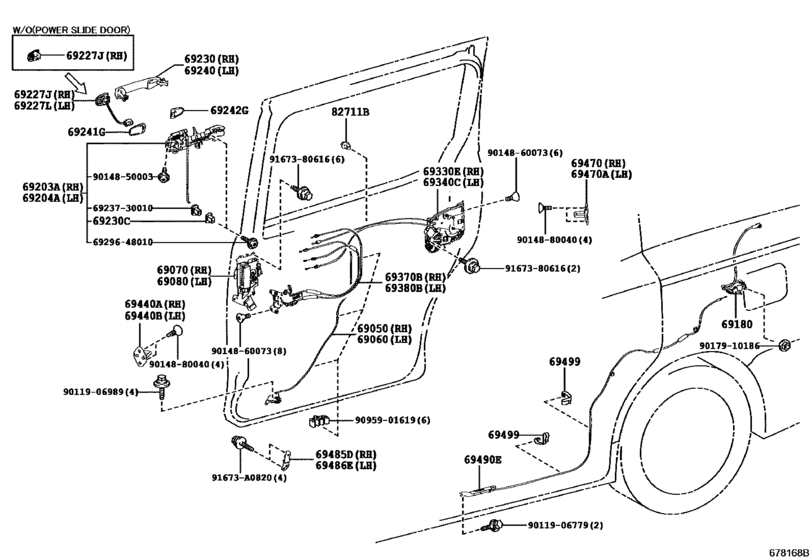

Rear Door Lock & Handle ([01.2014 - ] (1401- )) 58

#	OEM	Part name
69050	69305-28010	Lock Assy, Slide Door Full Open Stop, Rh
69060	69306-28010	Lock Assy, Slide Door Full Open Stop, Lh
69070	69070-28190-C0	Handle Assy, Slide Door, Inside, Rh
69070	69070-28180-C0	Handle Assy, Slide Door, Inside, Rh
69080	69080-28180-C0	Handle Assy, Slide Door, Inside, Lh
69180	69180-28150	Control Assy, Slide Door Half Open Stopper
69203	69203-28040	Frame Sub-Assy, Rear Door Outside Handle, Rh
69204	69204-28040	Frame Sub-Assy, Rear Door Outside Handle, Lh
69227	69217-52040-A1	Cover, Front Door Outside Handle
69227	69217-52040-B0	Cover, Front Door Outside Handle
69227	69217-52040-C2	Cover, Front Door Outside Handle, Lh
69227	69217-52040-D6	Cover, Front Door Outside Handle, Lh
69227	69217-52040-E9	Cover, Front Door Outside Handle, Lh
69227	69217-52040-H3	Cover, Front Door Outside Handle, Lh
69227	69227-28080-A0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-B0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-C0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-D0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-E0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-H0	Cover, Rear Door Outside Handle, Rh
69227	69227-28080-K0	Cover, Rear Door Outside Handle, Rh
69230	69213-28030-A0	Handle Assy, Rear Door Outside, Rh
69230	69213-28030-B0	Handle Assy, Rear Door Outside, Rh
69230	69213-28030-C0	Handle Assy, Rear Door Outside, Rh
69230	69213-28030-D0	Handle Assy, Rear Door Outside, Rh
69230	69213-28030-E1	Handle Assy, Rear Door Outside, Rh
69230	69213-28030-H0	Handle Assy, Rear Door Outside, Rh
69230	69239-30010	Bush(For Rear Door Outside Handle)
69230	69213-28030-K0	Handle Assy, Rear Door Outside, Rh
69241	69242-52030	Pad, Rear Door Outside Handle, Front
69242	69241-52020	Pad, Rear Door Outside Handle, Front
69330	69200-28080	Lock Assy, Slide Door, Rh
69330	69200-28070	Lock Assy, Slide Door, Rh
69330	69200-28111	Lock Assy, Slide Door, Rh
69340	69300-28110	Lock Assy, Slide Door, Rear Lh
69340	69300-28121	Lock Assy, Slide Door, Rear Lh
69370	69370-28140	Lock Assy, Slide Door, Front Rh
69370	69370-28141	Lock Assy, Slide Door, Front Rh
69380	69380-28160	Lock Assy, Slide Door, Front Lh
69380	69380-28161	Lock Assy, Slide Door, Front Lh
69440	69440-28060	Plate Assy, Slide Door Front Lock Striker
69470	69470-28120	Plate Assy, Slide Door Lock Striker
69485	69485-28060	Striker, Slide Door Open, Rh
69486	69486-28080	Striker, Slide Door Open, Lh
69490	69490-28060	Stopper Assy, Slide Door Half Open
69499	69499-28020	Clip, Slide Door Half Open Stopper Cable
82711	82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)
91673	91673-A0820	BOLT FLANGE
6923730010	69237-30010	Nut, Front Door Handle
6929648010	69296-48010	Screw, Door Inside Handle
9011906779	90119-06779	BOLT W-WASHER
9011906989	90119-06989	New Genuine Part
9014850003	90148-50003	Screw Hex Lobular
9014860073	90148-60073	SCREW HEXALOBULAR
9014880040	90148-80040	Screw Hex Lobular
9017910186	90179-10186	New Genuine Part
9095901619	90959-01619	CLAMP
9167380616	91673-80616	Bolt, W/washer

OEM	Part name	Category
69070-28180-C0	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69070-28190-C0	Handle Assy, Slide Door, Inside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69080-28180-C0	Handle Assy, Slide Door, Inside, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69180-28150	Control Assy, Slide Door Half Open Stopper	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69200-28070	Lock Assy, Slide Door, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69200-28080	Lock Assy, Slide Door, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69200-28111	Lock Assy, Slide Door, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69203-28040	Frame Sub-Assy, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69204-28040	Frame Sub-Assy, Rear Door Outside Handle, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-A0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-B0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-C0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-D0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-E1	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-H0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69213-28030-K0	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-A1	Cover, Front Door Outside Handle	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-B0	Cover, Front Door Outside Handle	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-C2	Cover, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-D6	Cover, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-E9	Cover, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69217-52040-H3	Cover, Front Door Outside Handle, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-A0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-B0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-C0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-D0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-E0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-H0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69227-28080-K0	Cover, Rear Door Outside Handle, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69237-30010	Nut, Front Door Handle	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69239-30010	Bush(For Rear Door Outside Handle)	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69241-52020	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69242-52030	Pad, Rear Door Outside Handle, Front	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69296-48010	Screw, Door Inside Handle	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69300-28110	Lock Assy, Slide Door, Rear Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69300-28121	Lock Assy, Slide Door, Rear Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69305-28010	Lock Assy, Slide Door Full Open Stop, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69306-28010	Lock Assy, Slide Door Full Open Stop, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69370-28140	Lock Assy, Slide Door, Front Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69370-28141	Lock Assy, Slide Door, Front Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69380-28160	Lock Assy, Slide Door, Front Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69380-28161	Lock Assy, Slide Door, Front Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69440-28060	Plate Assy, Slide Door Front Lock Striker	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69470-28120	Plate Assy, Slide Door Lock Striker	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69485-28060	Striker, Slide Door Open, Rh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69486-28080	Striker, Slide Door Open, Lh	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69490-28060	Stopper Assy, Slide Door Half Open	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
69499-28020	Clip, Slide Door Half Open Stopper Cable	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
82711-1A750	Clamp, No.1(For Back Door Lock Control Cable)	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90119-06779	BOLT W-WASHER	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90119-06989	New Genuine Part	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90148-50003	Screw Hex Lobular	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90148-60073	SCREW HEXALOBULAR	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90148-80040	Screw Hex Lobular	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90179-10186	New Genuine Part	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
90959-01619	CLAMP	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
91673-80616	Bolt, W/washer	Rear Door Lock & Handle ([01.2014 - ] (1401- ))
91673-A0820	BOLT FLANGE	Rear Door Lock & Handle ([01.2014 - ] (1401- ))

Source: Public OEM parts-catalog data
Variants: 2 / 28
Category: 181
Collected: 2026-08-04
