Search › Model › ZRR80

ZRR80

Toyota NOAH-VOXY-ESQUIRE · 2014 · 3,305 parts · 181 categories

3,305 items

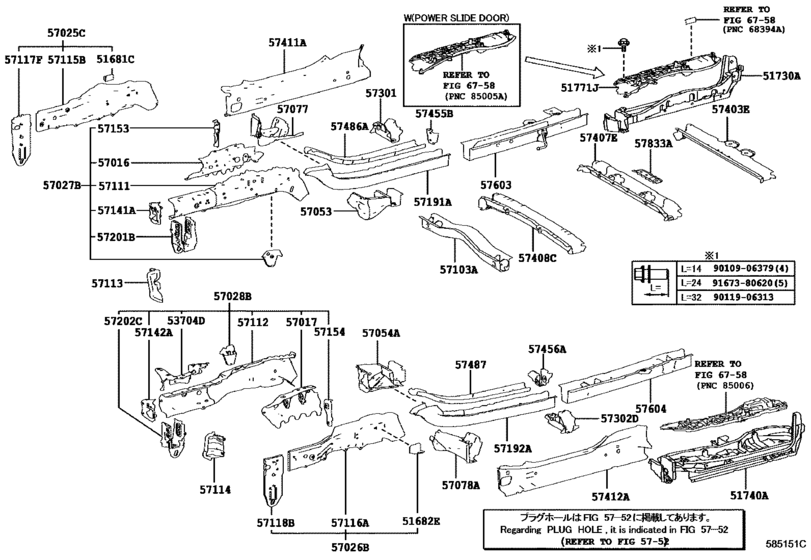

Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- )) 53

#	OEM	Part name
51681	51681-32050	Bracket, Flexible Hose
51682	51682-32040	Bracket, Flexible Hose, Lh
51730	51730-28180	Step Assy, Rear Floor, Rh
51740	51740-28180	Step Assy, Rear Floor, Lh
51771	51730-28160	Step, Rh
53704	53704-28100	Support Sub-Assy, Battery, Lh
57016	57016-28110	Reinforcement Sub-Assy, Front Side Member, Rh
57017	57017-28090	Reinforcement Sub-Assy, Front Side Member, Lh
57025	57025-28050	Member Sub-Assy, Front Side, Outer Rh
57026	57026-28030	Member Sub-Assy, Front Side, Outer Lh
57027	57027-28030	Member Sub-Assy, Front Side, Inner Rh
57028	57028-28030	Member Sub-Assy, Front Side, Inner Lh
57053	57053-28030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh
57054	57054-28020	Reinforcement Sub-Assy, Front Floor Cross Member, Lh
57077	57077-28030	Box Sub-Assy, Torque, Front Rh
57078	57078-28030	Box Sub-Assy, Torque, Front Lh
57103	57103-28050	Crossmenber Sub-Assy, Floor, No.3
57111	57111-28270	Member, Front Side, Rh
57112	57112-28250	Member, Front Side, Lh
57113	53287-28030	Extension, Front Side Member, Rh
57114	53288-28030	Extension, Front Side Member, Lh
57115	57115-44020	Plate, Front Side Member, Outer Rh
57116	57116-44020	Plate, Front Side Member, Outer Lh
57117	57117-28070	Plate Sub-Assy, Front Side Member, Front Rh
57118	57118-28040	Plate Sub-Assy, Front Side Member, Front Lh
57141	57141-28030	Support, Front Bumper Arm, Rh
57142	57142-28030	Support, Front Bumper Arm, Lh
57153	57153-28090	Reinforcement, Front Side Member, No.2 Rh
57154	57154-28060	Reinforcement, Front Side Member, No.2 Lh
57191	57191-28050	Member, Front Side, Inner Rear Rh
57192	57192-28040	Member, Front Side, Inner Rear Lh
57201	57201-28030	Extension Sub-Assy, Front Side Member, Rh
57202	57202-28030	Extension Sub-Assy, Front Side Member, Lh
57301	57301-28140	Outrigger Sub-Assy, No.1 Rh
57302	57302-28100	Outrigger Sub-Assy, No.1 Lh
57403	57403-28160	Member Sub-Assy, Center Floor Cross, No.3
57403	57403-28170	Member Sub-Assy, Center Floor Cross, No.3
57407	57407-28020	Member Sub-Assy, Center Floor Cross
57408	57408-28170	Member Sub-Assy, Front Floor Cross
57408	57408-28180	Member Sub-Assy, Front Floor Cross
57408	57408-28190	Member Sub-Assy, Front Floor Cross
57411	57411-28050	Member, Floor Side, Inner Rh
57412	57412-28060	Member, Floor Side, Inner Lh
57455	57455-28050	Gusset, Front Floor Crossmember, Rh
57456	57456-28040	Gusset, Front Floor Crossmember, Lh
57486	57127-28120	Reinforcement, Floor Side Member, No.1 Rh
57487	57128-28090	Reinforcement, Floor Side Member, No.1 Lh
57603	57603-28130	Member Sub-Assy, Rear Floor Side, Front Rh
57604	57604-28100	Member Sub-Assy, Rear Floor Side, Front Lh
57833	57833-28030	Reinforcement, Rear No.1 Seat Leg, Front No.3
9010906379	90109-06379	New Genuine Part
9011906313	90119-06313	New Genuine Part
9167380620	91673-80620	Bolt

OEM	Part name	Category
51681-32050	Bracket, Flexible Hose	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
51682-32040	Bracket, Flexible Hose, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
51730-28160	Step, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
51730-28180	Step Assy, Rear Floor, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
51740-28180	Step Assy, Rear Floor, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
53287-28030	Extension, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
53288-28030	Extension, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
53704-28100	Support Sub-Assy, Battery, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57016-28110	Reinforcement Sub-Assy, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57017-28090	Reinforcement Sub-Assy, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57025-28050	Member Sub-Assy, Front Side, Outer Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57026-28030	Member Sub-Assy, Front Side, Outer Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57027-28030	Member Sub-Assy, Front Side, Inner Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57028-28030	Member Sub-Assy, Front Side, Inner Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57053-28030	Reinforcement Sub-Assy, Front Floor Cross Member, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57054-28020	Reinforcement Sub-Assy, Front Floor Cross Member, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57077-28030	Box Sub-Assy, Torque, Front Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57078-28030	Box Sub-Assy, Torque, Front Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57103-28050	Crossmenber Sub-Assy, Floor, No.3	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57111-28270	Member, Front Side, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57112-28250	Member, Front Side, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57115-44020	Plate, Front Side Member, Outer Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57116-44020	Plate, Front Side Member, Outer Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57117-28070	Plate Sub-Assy, Front Side Member, Front Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57118-28040	Plate Sub-Assy, Front Side Member, Front Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57127-28120	Reinforcement, Floor Side Member, No.1 Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57128-28090	Reinforcement, Floor Side Member, No.1 Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57141-28030	Support, Front Bumper Arm, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57142-28030	Support, Front Bumper Arm, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57153-28090	Reinforcement, Front Side Member, No.2 Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57154-28060	Reinforcement, Front Side Member, No.2 Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57191-28050	Member, Front Side, Inner Rear Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57192-28040	Member, Front Side, Inner Rear Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57201-28030	Extension Sub-Assy, Front Side Member, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57202-28030	Extension Sub-Assy, Front Side Member, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57301-28140	Outrigger Sub-Assy, No.1 Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57302-28100	Outrigger Sub-Assy, No.1 Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57403-28160	Member Sub-Assy, Center Floor Cross, No.3	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57403-28170	Member Sub-Assy, Center Floor Cross, No.3	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57407-28020	Member Sub-Assy, Center Floor Cross	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57408-28170	Member Sub-Assy, Front Floor Cross	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57408-28180	Member Sub-Assy, Front Floor Cross	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57408-28190	Member Sub-Assy, Front Floor Cross	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57411-28050	Member, Floor Side, Inner Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57412-28060	Member, Floor Side, Inner Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57455-28050	Gusset, Front Floor Crossmember, Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57456-28040	Gusset, Front Floor Crossmember, Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57603-28130	Member Sub-Assy, Rear Floor Side, Front Rh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57604-28100	Member Sub-Assy, Rear Floor Side, Front Lh	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
57833-28030	Reinforcement, Rear No.1 Seat Leg, Front No.3	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
90109-06379	New Genuine Part	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
90119-06313	New Genuine Part	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
91673-80620	Bolt	Front Floor Panel & Front Floor Member ([01.2014 - ] FLOOR SIDE MEMBER (1401- ))
