ZRR75

Toyota NOAH-VOXY-ESQUIRE · 2007 · 3,824 parts · 201 categories
ZRR75 ×

← Back to categories

3,824 items

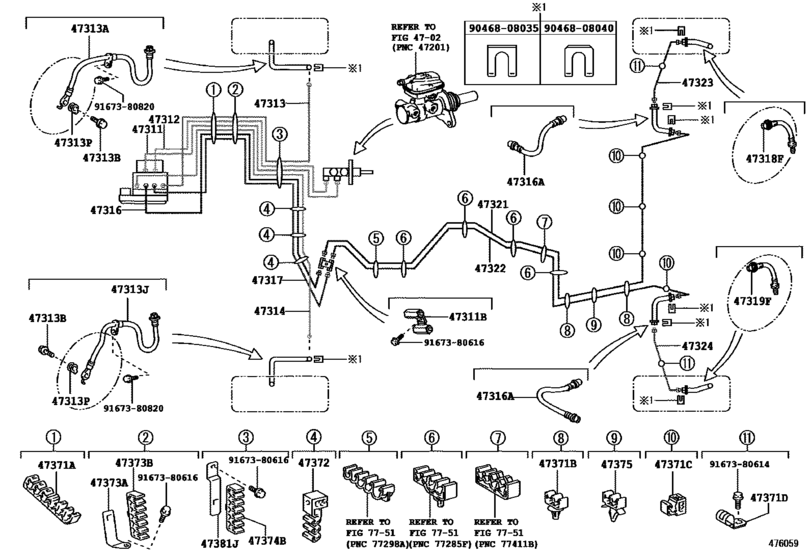

Brake Tube & Clamp ([06.2007 - ] ｱﾘ(VSC) (0706- )CBU) 38
#OEMPart name
47311 47311-28730 Tube, Front Brake, No.1
47311 47311-28740 Tube, Front Brake, No.1
47311 90412-10260 Way, No.1(For Front Brake Tube)
47312 47312-28530 Tube, Front Brake, No.2
47312 47312-28540 Tube, Front Brake, No.2
47313 47313-28480 Tube, Front Brake, No.3
47313 47313-28490 Tube, Front Brake, No.3
47313 90947-02F38 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-02F39 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47314 47314-28400 Tube, Front Brake, No.4
47314 47314-28410 Tube, Front Brake, No.4
47316 47316-28240 Tube, Front Brake, No.6
47316 47316-28250 Tube, Front Brake, No.6
47316 90947-02E81 Hose, Flexible(For Rear Brake Tube)
47317 47317-28280 Tube, Front Brake, No.7
47317 47317-28290 Tube, Front Brake, No.7
47318 90947-02B95 Hose, Flexible(For Rear Rh)
47321 47321-28570 Tube, Rear Brake, No.1
47322 47322-28360 Tube, Rear Brake, No.2
47323 47323-28380 Tube, Rear Brake, No.3
47324 47324-28280 Tube, Rear Brake, No.4
47371 90464-00890 Clamp, Brake Tube, No.1
47371 90469-07020 Clamp, Brake Tube, No.6
47371 90949-01C82 Clamp(For Clutch Master Cylinder Tube)
47371 90461-08694 Clamp, Brake Tube, No.1
47372 90949-01D02 Clamp, Brake Tube, No.2
47373 90949-01C65 Bracket, Tube Clamp
47373 90464-00902 Clamp, Brake Tube, No.3
47375 90469-07019 Clamp, Brake Tube, No.1
47381 90949-02008 Bracket, Brake Tube Clamp, No.2
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9046808040 90468-08040 CLIP
9167380614 91673-80614 BOLT, FLANGE W/WASER
9167380616 91673-80616 Bolt, W/washer
9167380820 91673-80820 Bolt (For Transmission Control Cable Bracket)
