ZRE182

Toyota COROLLA · 2013 · 2,846 parts · 166 categories

← Back to categories

2,846 items

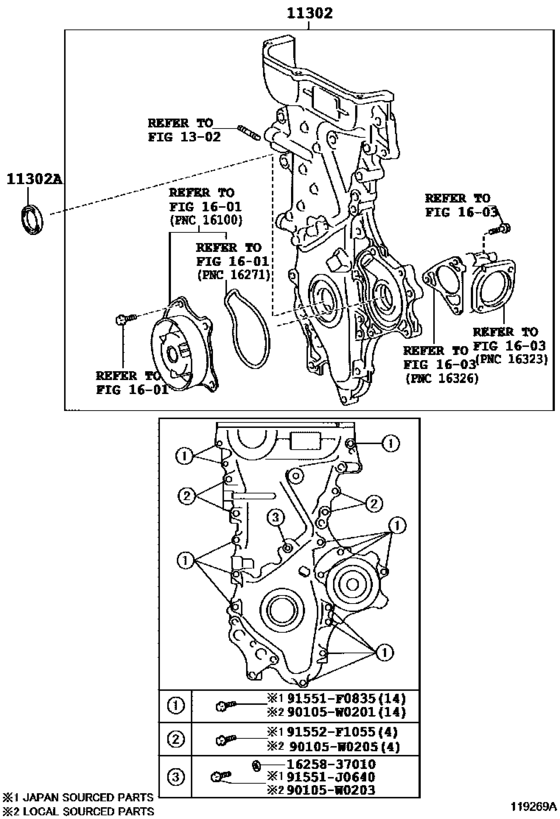

Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE) 10

#	OEM	Part name
11302	11310-0T071	Cover Sub-Assy, Timing Chain Or Belt
11302	11310-37011	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)
90105	90105-W0201	New Genuine Part
90105	90105-W0203	New Genuine Part
90105	90105-W0205	New Genuine Part
91551	91551-F0835	New Genuine Part
91551	91551-J0640	New Genuine Part
91552	91552-F1055	BOLT FLANGE
1625837010	16258-37010	Washer, Seal(For Cylinder Head Cover)

OEM	Part name	Category
11310-0T071	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
11310-37011	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16258-37010	Washer, Seal(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90105-W0201	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90105-W0203	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90105-W0205	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90311-38096	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
91551-F0835	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
91551-J0640	New Genuine Part	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
91552-F1055	BOLT FLANGE	Timing Gear Cover & Rear End Plate ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
