ZRE182

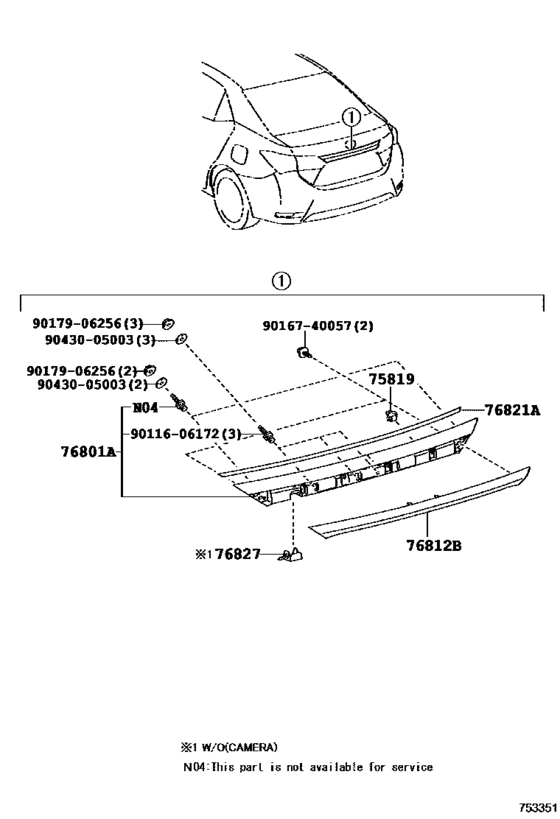

Rear Moulding ([06.2016 - ] (1606- )N..TUP) 9
| # | OEM | Part name |
|---|---|---|
| 75819 | 75819-33010 | Clip, Luggage Compartment Door Moulding |
| 76801 | 76811-02954 | Garnish Sub-Assy, Luggage Compartment Door, Outside |
| 76812 | 76812-02090 | Garnish, Luggage Compartment Door, Outside No.2 |
| 76821 | 76825-02290 | Protector, Luggage Compartment Door Outside Garnish |
| 76827 | 76827-02010 | Retainer, Back Door Garnish, No.2 |
| 9011606172 | 90116-06172 | BOLT STUD |
| 9016740057 | 90167-40057 | SCREW, PAN TAPPING |
| 9017906256 | 90179-06256 | NUT |
| 9043005003 | 90430-05003 | GASKET |
| OEM | Part name | Category |
|---|---|---|
| 75819-33010 | Clip, Luggage Compartment Door Moulding | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 76811-02954 | Garnish Sub-Assy, Luggage Compartment Door, Outside | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 76812-02090 | Garnish, Luggage Compartment Door, Outside No.2 | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 76825-02290 | Protector, Luggage Compartment Door Outside Garnish | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 76827-02010 | Retainer, Back Door Garnish, No.2 | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 90116-06172 | BOLT STUD | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 90167-40057 | SCREW, PAN TAPPING | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 90179-06256 | NUT | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
| 90430-05003 | GASKET | Rear Moulding ([06.2016 - ] (1606- )N..TUP) |
