Search › Model › ZRE182

ZRE182

Toyota COROLLA · 2013 · 2,846 parts · 166 categories

2,846 items

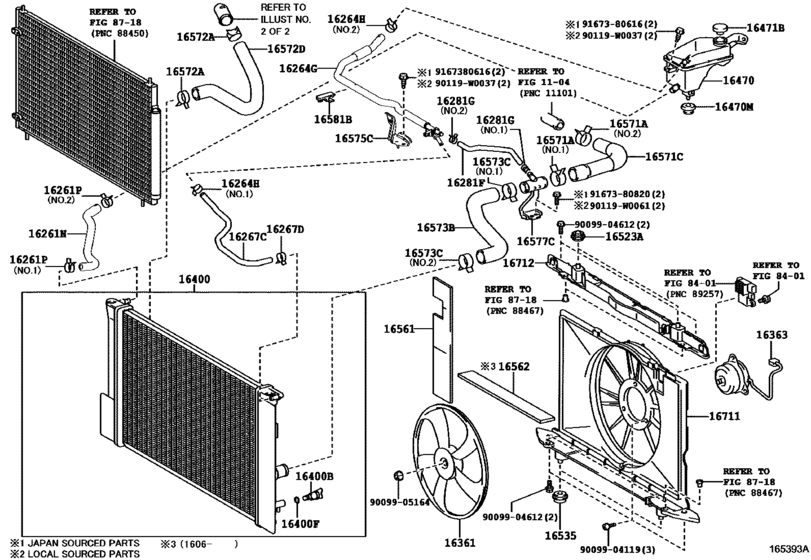

Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE) 44

#	OEM	Part name
16261	16261-0Y040	Hose, Water By-Pass, No.2
16261	90466-W0007	Clip(For Water By-Pass Hose No.1)
16261	96136-42201	Clip(For Ventilation Hose No.2)
16261	96136-42501	Clip(For Ventilation Hose)
16264	16264-0Y030	Hose, Water By-Pass, No.2
16264	90467-15022	Clip Or Clamp(For Ventilation Hose)
16264	96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)
16267	16267-0D020	Hose, Water By-Pass, No.3
16281	16281-0T050	Hose, Water By-Pass, No.4
16281	90467-17013	Clamp Or Clip(For Water By-Pass Hose No.4)
16281	96136-41901	Clip Or Clamp(For Ventilation Hose)
16361	16361-0D150	Fan
16363	16363-0D120	Motor, Cooling Fan
16400	16400-0D400	Radiator Assy
16400	16417-21280	Cock Sub-Assy, Radiator Drain
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16470	16480-0D030	Tank Assy, Radiator Reserve
16470	90480-18010	Grommet, Radiator Reserve Tank Hose
16471	16475-28140	Cap Sub-Assy, Radiator Reserve Tank
16471	16475-37011	Cap Sub-Assy, Radiator Reserve Tank
16523	16523-0Y030	Cushion, Radiator Support
16535	16535-0Y010	Support, Radiator, Lower
16561	16561-22030	Seal, Radiator To Support, No.1
16562	16561-0T240	Seal, Radiator To Support, No.2
16571	90466-W0016	Clip, Radiator Hose, No.1
16571	96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)
16571	96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)
16571	16571-0T150	Hose, Radiator, No.1
16572	16572-0D170	Hose, Radiator, No.2
16573	16573-0T070	Hose, Radiator, No.3
16573	90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)
16575	16575-0Y010	Bracket, Water Hose Clamp, No.1
16577	16577-0T020	Pipe, Radiator
16581	16581-36020	Clamp, Hose(For Radiator Hose)
16711	16711-0D190	Shroud, Fan
16711	16711-0D191	Shroud, Fan
16712	16712-0D010	Shroud, Fan, No.2
90119	90119-W0037	Bolt, W/washer
90119	90119-W0061	New Genuine Part
9009904119	90099-04119	BOLT WASHER HEAD
9009904612	90099-04612	Bolt
9009905164	90099-05164	Nut
9167380616	91673-80616	Bolt, W/washer
9167380820	91673-80820	Bolt (For Transmission Control Cable Bracket)

OEM	Part name	Category
16261-0Y040	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16264-0Y030	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16267-0D020	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16281-0T050	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16361-0D150	Fan	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16363-0D120	Motor, Cooling Fan	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16400-0D400	Radiator Assy	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16417-21280	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16475-28140	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16475-37011	Cap Sub-Assy, Radiator Reserve Tank	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16480-0D030	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16523-0Y030	Cushion, Radiator Support	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16535-0Y010	Support, Radiator, Lower	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16561-0T240	Seal, Radiator To Support, No.2	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16561-22030	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16571-0T150	Hose, Radiator, No.1	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16572-0D170	Hose, Radiator, No.2	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16573-0T070	Hose, Radiator, No.3	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16575-0Y010	Bracket, Water Hose Clamp, No.1	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16577-0T020	Pipe, Radiator	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16581-36020	Clamp, Hose(For Radiator Hose)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16711-0D190	Shroud, Fan	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16711-0D191	Shroud, Fan	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
16712-0D010	Shroud, Fan, No.2	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90099-04119	BOLT WASHER HEAD	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90099-04612	Bolt	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90099-05164	Nut	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90119-W0037	Bolt, W/washer	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90119-W0061	New Genuine Part	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90466-35001	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90466-W0007	Clip(For Water By-Pass Hose No.1)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90466-W0016	Clip, Radiator Hose, No.1	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90467-15022	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90467-17013	Clamp Or Clip(For Water By-Pass Hose No.4)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
90480-18010	Grommet, Radiator Reserve Tank Hose	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
91673-80616	Bolt, W/washer	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
91673-80820	Bolt (For Transmission Control Cable Bracket)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-41901	Clip Or Clamp(For Ventilation Hose)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-42101	Clip, Hose(For Radiator Hose Sub-Assy)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-42201	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-42501	Clip(For Ventilation Hose)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-43901	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)
96136-44301	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([01.2014 - ] (1401- )1ZRFE,2ZRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 166
Collected: 2026-08-02
