ZRE182

Toyota COROLLA · 2013 · 2,846 parts · 166 categories

← Back to categories

2,846 items

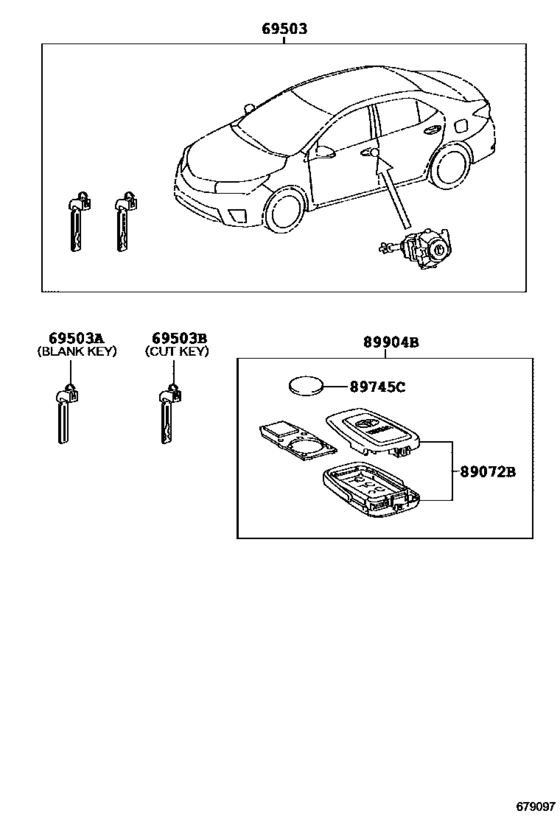

Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP) 10

#	OEM	Part name
69503	69005-02E90	Cylinder Set, Lock
69503	89704-02630	Cylinder Set, Lock
69503	89704-02650	Cylinder Set, Lock
69503	89704-02670	Cylinder Set, Lock
69503	69515-47030	Key, Blank
69503	69515-47020	Key, Cut
89072	89072-02620	Housing Set, Door Control Transmitter (For Smart Key)
89745	89745-50020	Battery, Transmitter
89904	89904-02100	Transmitter Sub-Assy, Electrical Key
89904	89904-02110	Transmitter Sub-Assy, Electrical Key

OEM	Part name	Category
69005-02E90	Cylinder Set, Lock	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
69515-47020	Key, Cut	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
69515-47030	Key, Blank	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89072-02620	Housing Set, Door Control Transmitter (For Smart Key)	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89704-02630	Cylinder Set, Lock	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89704-02650	Cylinder Set, Lock	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89704-02670	Cylinder Set, Lock	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89745-50020	Battery, Transmitter	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89904-02100	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)
89904-02110	Transmitter Sub-Assy, Electrical Key	Lock Cylinder Set ([06.2016 - ] WITH(SMART ENTRY) (1606- )TUP ; (1701- )GEN..SAP)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 166
Collected: 2026-08-02
