| 82212-02010 |
Harness Assy, Air Conditioner |

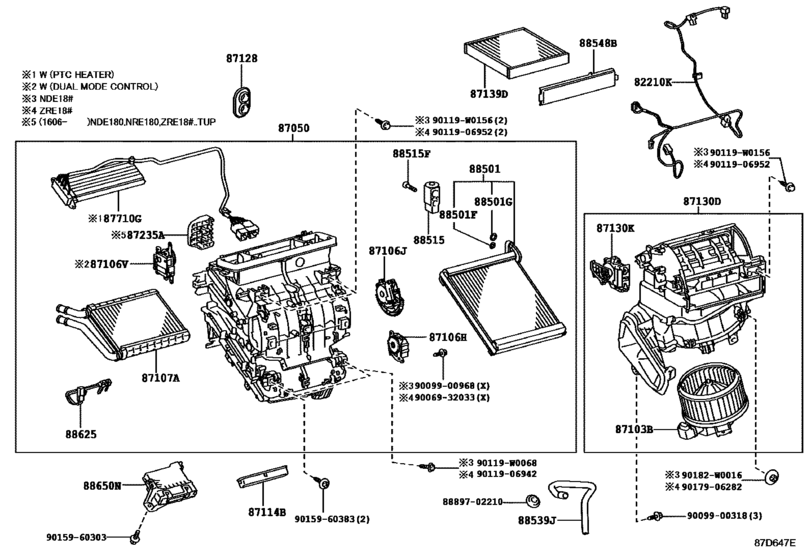

Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87050-05790 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87050-0F330 |
Radiator Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87103-02140 |
Motor Sub-Assy, Blower W/fan |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87103-02150 |
Motor Sub-Assy, Blower W/fan |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87106-02140 |
Servo Sub-Assy, Damper(For Mode) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87106-02180 |
Servo Sub-Assy, Damper, No.1 |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87106-02260 |
Servo Sub-Assy, Damper, No.1 |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87106-02270 |
Servo Sub-Assy, Damper(For Airmix) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87106-02280 |
Servo Sub-Assy, Damper(For Airmix No.2) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87107-02150 |
Unit Sub-Assy, Heater Radiator |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87114-02010 |
Cover, Heater |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87128-02010 |
Grommet, Heater |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87130-02291 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87130-02311 |
Blower Assy |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87139-0D070 |
Filter, Clean Air |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87139-50100 |
Clean Air Filter (Charcoal type) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 87235-05010 |
Bracket, Heater Cover |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88501-02202 |
Evaporator Sub-Assy, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88515-68010 |
Valve, Cooler Expansion |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88539-02260 |
Hose, Drain Cooler |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88548-02070 |
Case, Air Filter |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88625-02110 |
Thermistor, Cooler, No.1 |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88650-02F50 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 88650-02F60 |
Amplifier Assy, Air Conditioner |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90068-14037 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90068-14038 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90069-32033 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90099-00318 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90099-00968 |
Screw(For Air Conditioner Unit) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90099-04542 |
Bolt(For Cooler Expansion Valve) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90099-14120 |
O-Ring, Cooler Evaporator No.1(Discharge) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90099-14121 |
O-Ring, Cooler Evaporator No.1(Suction) |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90119-06942 |
BOLT WWASHER |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90119-06952 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90119-W0068 |
Bolt |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90119-W0156 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90159-60303 |
SCREW |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90159-60383 |
SCREW WWASHER |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90159-A0010 |
SCREW WWASHER TAPP |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90179-06282 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
| 90182-W0016 |
New Genuine Part |
Heating & Air Conditioning - Cooler Unit ([06.2013 - ] AUTO AIR CONDITIONER (1306- )LHD) |
