| 15012-0T030 |
Cover Sub-Assy, Oil Pump |

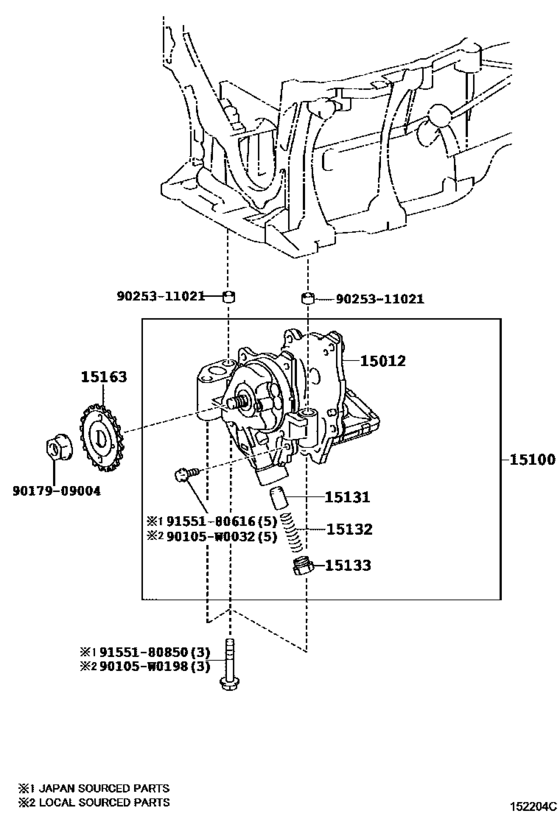

Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15012-37010 |
Cover Sub-Assy, Oil Pump |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15100-0T030 |
Pump Assy, Oil |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15100-37030 |
Pump Assy, Oil |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15131-0A040 |
Valve, Oil Pump Relief |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15132-46060 |
Spring, Oil Pump Relief Valve |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15133-28020 |
Plug, Oil Pump Relief Valve |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15163-0H010 |
Gear, Oil Pump Drive Shaft |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 15163-28010 |
Gear, Oil Pump Drive Shaft |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 90105-W0032 |
New Genuine Part |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 90105-W0198 |
New Genuine Part |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 90179-09004 |
NUT |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 90253-11021 |
Pin, Ring |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 91551-80616 |
BOLT FLANGE |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
| 91551-80850 |
Bolt, Compressor, No.1 |
Engine Oil Pump ([01.2014 - ] (1401- )1ZRFE,2ZRFE) |
