ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

← Back to categories

2,699 items

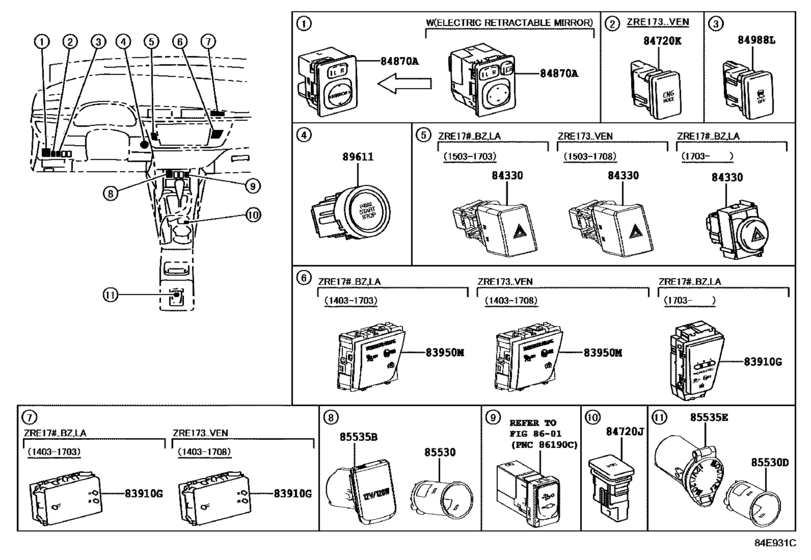

Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- )) 11

#	OEM	Part name
83910	83910-02170	Clock Assy
83950	83950-02350	Lamp Assy, Telltale
84330	84332-02230	Switch Assy, Hazard Warning Signal
84330	84332-02231	Switch Assy, Hazard Warning Signal
84720	84721-02010	Switch Assy, Pattern Select
84720	84721-02011	Switch Assy, Pattern Select
84870	84870-12261	Switch Assy, Outer Mirror
84870	84870-12240	Switch Assy, Outer Mirror
85530	85530-0D040	Socket Assy, Power Outlet, No.1
85535	85535-02140	Cover, Power Outlet Socket, No.1
85535	85535-02050-C0	Cover, Power Outlet Socket, No.2

OEM	Part name	Category
83910-02170	Clock Assy	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
83950-02350	Lamp Assy, Telltale	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84332-02230	Switch Assy, Hazard Warning Signal	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84332-02231	Switch Assy, Hazard Warning Signal	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84721-02010	Switch Assy, Pattern Select	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84721-02011	Switch Assy, Pattern Select	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84870-12240	Switch Assy, Outer Mirror	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
84870-12261	Switch Assy, Outer Mirror	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
85530-0D040	Socket Assy, Power Outlet, No.1	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
85535-02050-C0	Cover, Power Outlet Socket, No.2	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))
85535-02140	Cover, Power Outlet Socket, No.1	Switch & Relay & Computer ([03.2014 - ] INSTRUMENT PANEL (1403- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 170
Collected: 2026-08-02
