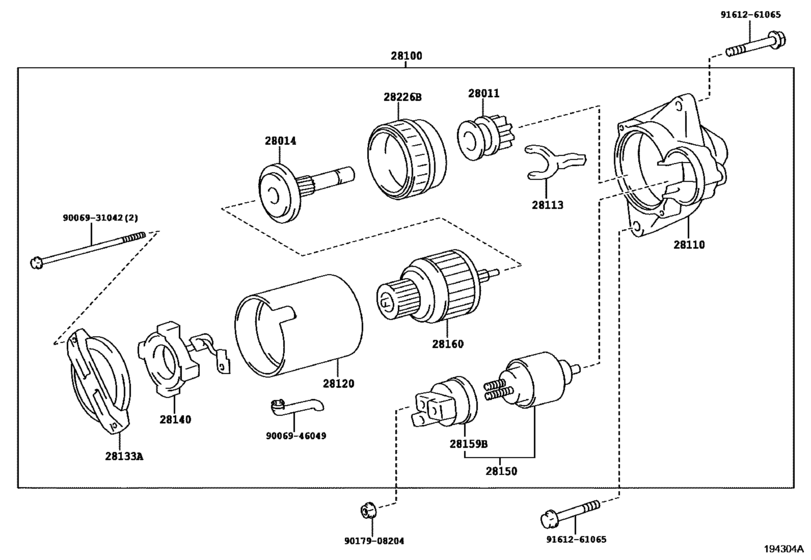

| 28011-0T310 |
Clutch Sub-Assy, Starter |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28014-0T310 |
Shaft Sub-Assy, Planet Carrier |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28100-0T310 |
Starter Assy |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28110-0T310 |
Housing Assy, Starter Drive |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28113-0T310 |
Lever, Starter Pinion Drive |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28120-0T310 |
Yoke Assy, Starter |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28133-0T310 |
Frame, Commutator End |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28140-0T310 |
Holder Assy, Starter Brush |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28150-0T310 |
Switch Assy, Magnet Starter |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28159-0T310 |
Cover, Magnet Switch |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28160-0T310 |
Armature Assy, Starter |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 28226-0T310 |
Starter Kit, Repair Service |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 90069-31042 |
New Genuine Part |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 90069-46049 |
New Genuine Part |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 90080-18070 |
NUT, WWASHER |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 90119-A0104 |
Bolt with Washer |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 90179-08204 |
Nut |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
| 91612-61065 |
Bolt(For Transaxle & Engine Setting) |
Starter ([10.2014 - ] 12V 1.0KW (1410- )) |
