Search › Model › ZRE173

ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

2,699 items

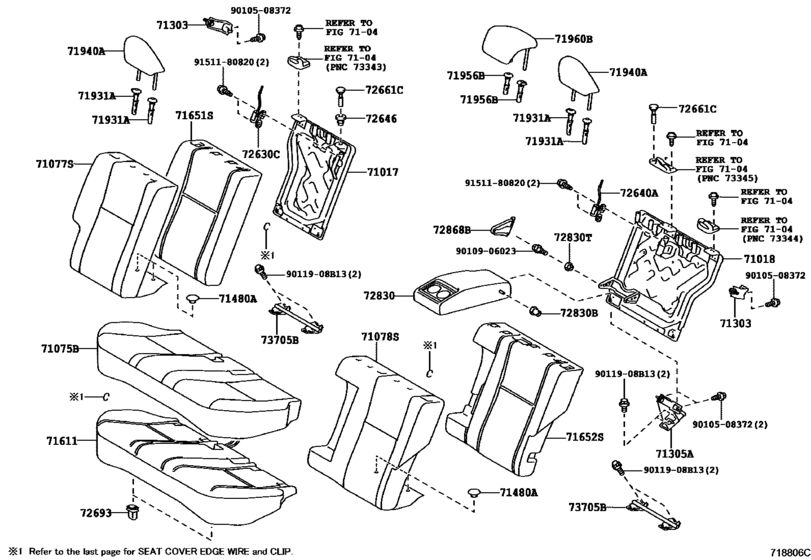

Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA) 31

#	OEM	Part name
71017	71017-02350	Frame Sub-Assy, Rear Seat Back, Rh
71018	71018-02480	Frame Sub-Assy, Rear Seat Back, Lh
71075	71075-02W30-B2	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-0Z250-B1	Cover, Rear Seat Back, Rh (For Separate Type)
71078	71078-02T50-B1	Cover, Rear Seat Back, Lh(For Separate Type)
71303	71303-02270	Hinge Sub-Assy, Rear Seat Back
71305	71305-02290	Hinge Sub-Assy, Rear Seat Back, Center
71480	90467-09156-C0	Clip(For Deck Boad)
71611	71503-02420	Pad, Rear Seat Cushion
71651	71651-02670	Pad, Rear Seat Back, Rh(For Separate Type)
71652	71652-02600	Pad, Rear Seat Back, Lh(For Separate Type)
71931	71930-52030-B1	Support, Front Seat Headrest
71931	71931-42020-B7	Support, Front Seat Headrest
71940	71940-02N30-B1	Headrest Assy, Rear Seat
71956	71956-02040-B3	Support, Rear Seat Headrest
71956	71970-02040-B9	Support, Rear Seat Headrest
71960	71960-02F50-B1	Headrest Assy, Rear Seat, Center
72630	72630-02221	Lock Assy, Rear Seat Back, Rh
72640	72640-02161	Lock Assy, Rear Seat Back, Lh
72646	72646-33010-B8	Grommet, Rear Seat Back Stop Button
72661	72661-32030-B8	Button, Rear Seat Back Stop Release
72693	72693-12080	Hook, Rear Seat Cushion Lock
72830	72830-02E90-B0	Armrest Assy, Rear Seat, Center
72830	90386-06011	Bush, Control Shaft
72830	90386-08077	Bush (For Throttle Cam Shaft)
72868	72868-12010-B2	Cover, Center Armrest Hinge, Rh
73705	73705-02180	Bracket Sub-Assy, Cross Anchor
9011908	90119-08B13	BOLT WWASHER
9010508372	90105-08372	BOLT WASHER BASED
9010906023	90109-06023	New Genuine Part
9151180820	91511-80820	BOLT FLANGE

OEM	Part name	Category
71017-02350	Frame Sub-Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71018-02480	Frame Sub-Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71075-02W30-B2	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71077-0Z250-B1	Cover, Rear Seat Back, Rh (For Separate Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71078-02T50-B1	Cover, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71303-02270	Hinge Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71305-02290	Hinge Sub-Assy, Rear Seat Back, Center	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71503-02420	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71651-02670	Pad, Rear Seat Back, Rh(For Separate Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71652-02600	Pad, Rear Seat Back, Lh(For Separate Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71930-52030-B1	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71931-42020-B7	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71940-02N30-B1	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71956-02040-B3	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71960-02F50-B1	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
71970-02040-B9	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72630-02221	Lock Assy, Rear Seat Back, Rh	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72640-02161	Lock Assy, Rear Seat Back, Lh	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72646-33010-B8	Grommet, Rear Seat Back Stop Button	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72661-32030-B8	Button, Rear Seat Back Stop Release	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72830-02E90-B0	Armrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
72868-12010-B2	Cover, Center Armrest Hinge, Rh	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
73705-02180	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90105-08372	BOLT WASHER BASED	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90109-06023	New Genuine Part	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90119-08B13	BOLT WWASHER	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90386-06011	Bush, Control Shaft	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90386-08077	Bush (For Throttle Cam Shaft)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
90467-09156-C0	Clip(For Deck Boad)	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
91511-80820	BOLT FLANGE	Rear Seat & Seat Track ([03.2014 - 08.2017] FOLDING SEAT (1403-1708)N..VEN ; (1403- )D ; (1403- )BZ ,LA)
