ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

← Back to categories

2,699 items

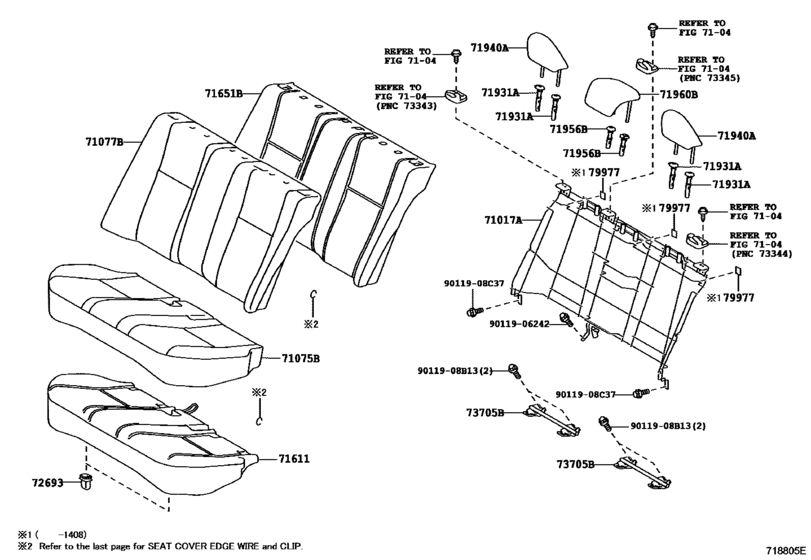

Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N) 16

#	OEM	Part name
71017	71017-02791	Frame Sub-Assy, Rear Seat Back
71075	71075-02W20-B1	Cover, Rear Seat Cushion (For Bench Type)
71077	71077-0Z261-B1	Cover, Rear Seat Back (For Bench Type)
71611	71503-02480	Pad, Rear Seat Cushion
71651	71507-02320	Pad, Rear Seat Back(For Bench Type)
71931	71930-52030-B1	Support, Front Seat Headrest
71931	71931-42020-B7	Support, Front Seat Headrest
71940	71940-02N20-B0	Headrest Assy, Rear Seat
71956	71956-02040-B3	Support, Rear Seat Headrest
71956	71970-02040-B9	Support, Rear Seat Headrest
71960	71960-02F60-B0	Headrest Assy, Rear Seat, Center
72693	72693-12080	Hook, Rear Seat Cushion Lock
73705	73705-02180	Bracket Sub-Assy, Cross Anchor
9011908	90119-08B13	BOLT WWASHER
9011908	90119-08C37	BOLT WWASHER
9011906242	90119-06242	New Genuine Part

OEM	Part name	Category
71017-02791	Frame Sub-Assy, Rear Seat Back	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71075-02W20-B1	Cover, Rear Seat Cushion (For Bench Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71077-0Z261-B1	Cover, Rear Seat Back (For Bench Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71503-02480	Pad, Rear Seat Cushion	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71507-02320	Pad, Rear Seat Back(For Bench Type)	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71930-52030-B1	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71931-42020-B7	Support, Front Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71940-02N20-B0	Headrest Assy, Rear Seat	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71956-02040-B3	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71960-02F60-B0	Headrest Assy, Rear Seat, Center	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
71970-02040-B9	Support, Rear Seat Headrest	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
72693-12080	Hook, Rear Seat Cushion Lock	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
73705-02180	Bracket Sub-Assy, Cross Anchor	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
90119-06242	New Genuine Part	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
90119-08B13	BOLT WWASHER	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)
90119-08C37	BOLT WWASHER	Rear Seat & Seat Track ([03.2014 - 08.2017] FIXED SEAT (1403-1708)D ; (1403- )ZRE172..N)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 170
Collected: 2026-08-02
