ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

2,699 items

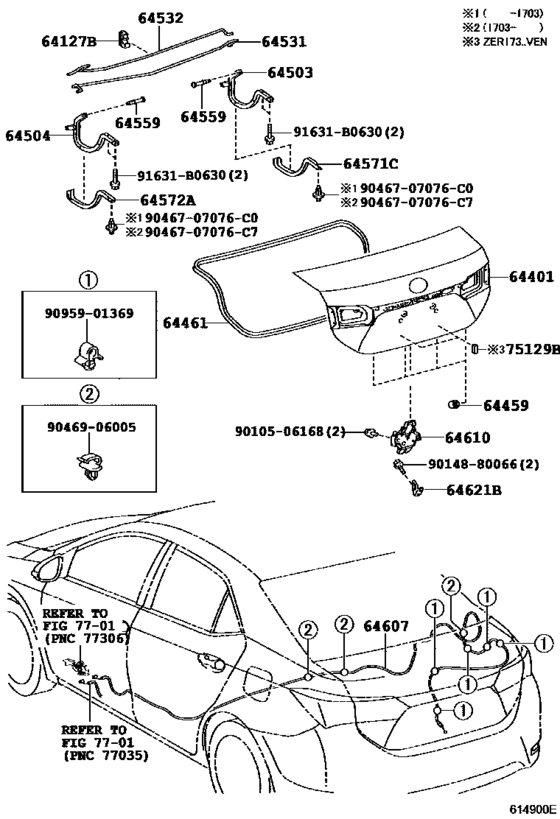

Luggage Compartment Door & Lock ([03.2014 - ] (1403- )) 31

#	OEM	Part name
64127	64127-33071	Support, Luggage Compartment Door Torsion Bar
64401	64401-02C70	Panel Sub-Assy, Luggage Compartment Door
64401	64401-02C71	Panel Sub-Assy, Luggage Compartment Door
64401	64503-02191	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64401	64531-02371	Bar, Luggage Door Hinge Torsion, Rh
64401	64532-02371	Bar, Luggage Door Hinge Torsion, Lh
64401	64401-02C60	Panel Sub-Assy, Luggage Compartment Door
64401	64401-02C61	Panel Sub-Assy, Luggage Compartment Door
64401	64531-02381	Bar, Luggage Door Hinge Torsion, Rh
64401	64532-02381	Bar, Luggage Door Hinge Torsion, Lh
64459	90541-09116	Cushion(For Luggage Compartment Door Panel)
64461	64461-02230	Weatherstrip, Luggage Compartment Door
64503	64503-02190	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64531	64531-02370	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-02380	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-02370	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-02380	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-12040	Pin, Luggage Door Hinge
64571	64571-02030	Cover, Luggage Compartment Door, Rh
64572	64572-02030	Cover, Luggage Compartment Door, Lh
64607	64607-12A60	Cable Sub-Assy, Luggage Door Lock Control
64610	64600-02080	Lock Assy, Luggage Compartment Door
64621	64621-06080	Striker, Luggage Compartment Door Lock
75129	75129-13020	Cushion, Rr Licence Plate
91631	91631-B0630	BOLT WWASHER
9010506168	90105-06168	BOLT WASHER BASED
9014880066	90148-80066	SCREW HEXALOBULAR
9046707076	90467-07076-C0	Clip, Radiator Grille
9046707076	90467-07076-C7	Clip, Hood Moulding
9046906005	90469-06005	Clamp(For Hood Lock Control Cable)
9095901369	90959-01369	Clamp, Hood Lock Control Cable

OEM	Part name	Category
64127-33071	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64401-02C60	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64401-02C61	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64401-02C70	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64401-02C71	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64461-02230	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64503-02190	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64503-02191	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64531-02370	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64531-02371	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64531-02380	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64531-02381	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64532-02370	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64532-02371	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64532-02380	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64532-02381	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64559-12040	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64571-02030	Cover, Luggage Compartment Door, Rh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64572-02030	Cover, Luggage Compartment Door, Lh	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64600-02080	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64607-12A60	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
64621-06080	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
75129-13020	Cushion, Rr Licence Plate	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90148-80066	SCREW HEXALOBULAR	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90467-07076-C0	Clip, Radiator Grille	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90467-07076-C7	Clip, Hood Moulding	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90469-06005	Clamp(For Hood Lock Control Cable)	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90541-09116	Cushion(For Luggage Compartment Door Panel)	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
90959-01369	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
91631-B0630	BOLT WWASHER	Luggage Compartment Door & Lock ([03.2014 - ] (1403- ))
