Search › Model › ZRE173

ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories
ZRE173 ×

← Back to categories

2,699 items

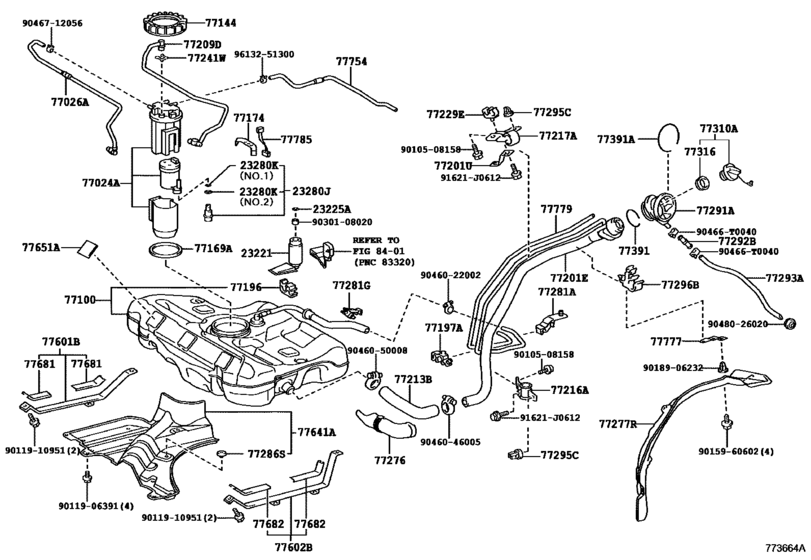

Fuel Tank & Tube ([01.2015 - ] FUEL TANK(GASOLINE TANK) (1501- )VEN) 64
#OEMPart name
23221 23220-37210 Pump, Fuel
23221 23220-37211 Pump, Fuel
23225 23225-21020 Spacer, Fuel Pump
23280 23280-21010 Regulator Assy, Fuel Pressure
23280 90301-04013 Ring, O(For Fuel Pump)
23280 90301-15024 Ring, O(For Fuel Pump)
77024 77024-12150 Plate Sub-Assy, Fuel Suction
77024 77024-12180 Plate Sub-Assy, Fuel Suction
77026 77026-02060 Tube Sub-Assy, Fuel Evaporation, No.1
77100 77001-02450 Tank Assy, Fuel
77100 77100-02A10 Tank Assy, Fuel
77144 77144-52030 Retainer, Fuel Pump Gauge
77144 77144-52040 Retainer, Fuel Pump Gauge
77169 77169-02080 Gasket, Fuel Suction Tube Set
77174 77174-72010 Support, Fuel Suction, No.1
77196 77196-12080 Clamp, Evaporation Vent Tube, No.1
77197 77196-12060 Clamp, Evaporation Vent Tube, No.1
77201 77201-02510 Pipe Sub-Assy, Fuel Tank Filler
77201 77131-02140 Bracket(For Fuel Tank Inlet Pipe)
77209 77209-02260 Tube Sub-Assy, Fuel Tank Main
77213 77213-12330 Hose, Fuel Tank To Filler Pipe
77216 77216-02130 Support, Fuel Tank Filler Pipe, No.1
77217 77217-02090 Support, Fuel Tank Filler Pipe, No.2
77229 77229-12100 Clamp, Breather Tube
77241 77241-32060 Clip, Tube Joint
77276 77276-12130 Protector, Fuel Hose
77277 77277-02220 Protector, Fuel Tank Filler Pipe
77281 77281-12110 Clamp, Fuel Filler Pipe
77281 77281-12150 Clamp, Fuel Hose
77286 77286-12110 Cushion, Fuel Tank Protector
77291 77291-02180 Shield, Fuel Tank Filler Pipe
77292 77292-02020 Shield, Fuel Tank Drain Plug
77293 77293-02010 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-12070 Grommet, Fuel Tube
77296 77296-12070 Plate, Fuel Tube Support
77310 77300-12020 Cap Assy, Fuel Tank
77316 77316-52040 Gasket, Fuel Tank Cap
77391 77391-02020 Ring, Fuel Inlet Box
77391 77391-06110 Ring, Fuel Inlet Box
77601 77601-02100 Band Sub-Assy, Fuel Tank, No.1 Rh
77602 77602-02100 Band Sub-Assy, Fuel Tank, No.1 Lh
77641 77641-02140 Protector, Fuel Tank, No.1
77651 77651-12080 Cushion, Fuel Tank, No.1
77681 77681-02050 Seat, Fuel Tank Band, Rh
77754 77754-02100 Hose, Charcoal Canister Outlet, No.1
77777 77777-02010 Bracket, Fuel Tube Clamp
77779 77779-02150 Tube, Charcoal Canister Outlet
77785 77785-12010 Harness, Fuel Pump
90466 90466-T0040 Clip(For Fuel Hose No.2)
91621 91621-J0612 BOLT W-WASHER
9010508158 90105-08158 Plug(For Fuel Sub-Tank)
9011906391 90119-06391 Bolt, W/Washer
9011910951 90119-10951 BOLT WWASHER
9015960602 90159-60602 SCREW
9018906232 90189-06232 GROMMET SCREW
9030108020 90301-08020 Ring, O(For Fuel Pump)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046005 90460-46005 Clamp (For Fuel Filler Pipe)
9046050008 90460-50008 Clamp (For Fuel Filler Pipe)
9046712056 90467-12056 Clamp Or Clip(For Throttle Body Hose)
9046712056 90466-T0048 New Genuine Part
9048026020 90480-26020 Grommet, Sliding Roof Drain
9613251300 96132-51300 Clip(For Ventilation Hose No.2)
