ZRE173

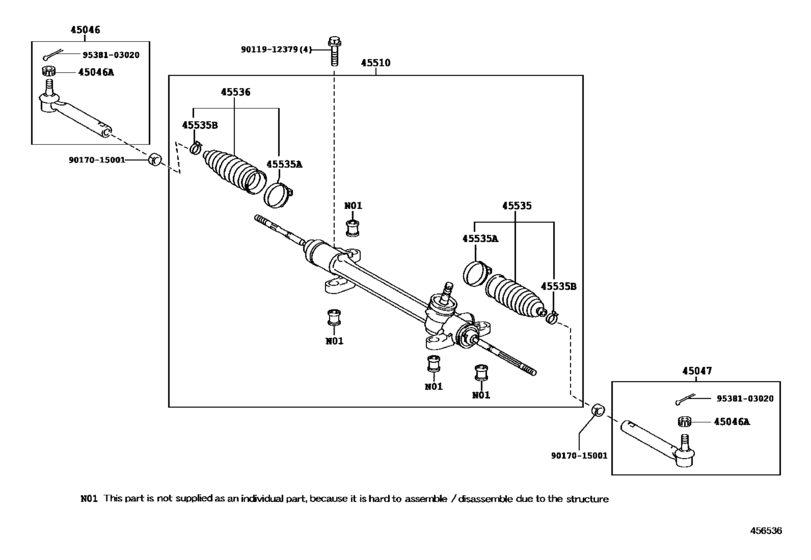

Front Steering Gear & Link ([03.2014 - ] (1403- )) 9
| # | OEM | Part name |
|---|---|---|
| 45046 | 45046-09640 | End Sub-Assy, Tie Rod, Rh |
| 45046 | 90171-12028 | Nut, Castle(For Pitman Arm) |
| 45510 | 45510-02640 | Gear Assy, Steering |
| 45535 | 45535-09220 | Boot, Steering Rack, No.1 |
| 45535 | 45538-02040 | Clamp(For Steering Rack Boot) |
| 45535 | 45537-0D040 | Clip(For Steering Rack Boot) |
| 9011912379 | 90119-12379 | New Genuine Part |
| 9017015001 | 90170-15001 | Nut, Rack End Lock |
| 9538103020 | 95381-03020 | Pin, Cotter(For Reverse Shaft Restrict Pin) |
| OEM | Part name | Category |
|---|---|---|
| 45046-09640 | End Sub-Assy, Tie Rod, Rh | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 45510-02640 | Gear Assy, Steering | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 45535-09220 | Boot, Steering Rack, No.1 | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 45537-0D040 | Clip(For Steering Rack Boot) | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 45538-02040 | Clamp(For Steering Rack Boot) | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 90119-12379 | New Genuine Part | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 90170-15001 | Nut, Rack End Lock | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 90171-12028 | Nut, Castle(For Pitman Arm) | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
| 95381-03020 | Pin, Cotter(For Reverse Shaft Restrict Pin) | Front Steering Gear & Link ([03.2014 - ] (1403- )) |
