Search › Model › ZRE173

ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

2,699 items

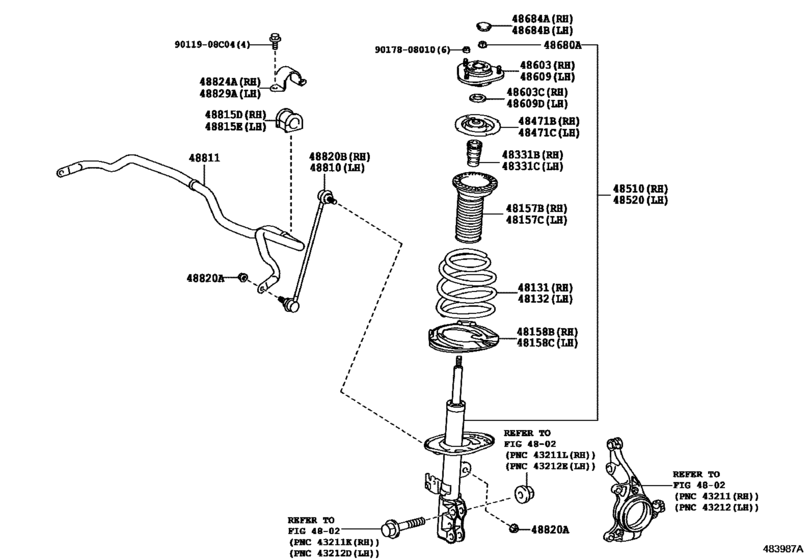

Front Spring & Shock Absorber ([03.2014 - ] (1403- )) 20

#	OEM	Part name
48131	48131-02T00	Spring, Front Coil, Rh
48157	48157-02190	Insulator, Front Coil Spring, Upper Rh
48158	48158-02160	Insulator, Front Coil Spring, Lower Rh
48331	48331-02060	Bumper, Front Spring, Rh
48471	48044-02140	Seat, Front Coil Spring, Upper Rh
48510	48510-8Z144	Absorber Assy, Shock, Front Rh
48520	48520-8Z032	Absorber Assy, Shock, Front Lh
48603	48609-02200	Support Sub-Assy, Front Suspension
48603	48609-02201	Support Sub-Assy, Front Suspension
48603	90303-22002	Seal, Dust(For Front Suspension Support)
48680	90177-T0018	Nut(For Front Support To Front Shock Absorber)
48680	90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)
48684	48684-52010	Cover, Front Suspension Support Dust
48810	48820-47010	Link Assy, Front Stabilizer
48811	48811-02250	Bar, Stabilizer, Front
48815	48815-12360	Bush, Front Stabilizer Bar, No.1
48820	90179-12151	Nut(For Front Stabilizer Link)
48824	48824-02070	Bracket, Front Stabilizer, No.1 Rh
9011908	90119-08C04	BOLT WWASHER
9017808010	90178-08010	Nut(For Front Suspension Support)

OEM	Part name	Category
48044-02140	Seat, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48131-02T00	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48157-02190	Insulator, Front Coil Spring, Upper Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48158-02160	Insulator, Front Coil Spring, Lower Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48331-02060	Bumper, Front Spring, Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48510-8Z144	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48520-8Z032	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48609-02200	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48609-02201	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48684-52010	Cover, Front Suspension Support Dust	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48811-02250	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48815-12360	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48820-47010	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
48824-02070	Bracket, Front Stabilizer, No.1 Rh	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90119-08C04	BOLT WWASHER	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90177-T0018	Nut(For Front Support To Front Shock Absorber)	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90178-08010	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90179-14015	Nut, Castle (For Front Lower Ball Joint Setting)	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
90303-22002	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([03.2014 - ] (1403- ))
