ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories
ZRE173 ×

← Back to categories

2,699 items

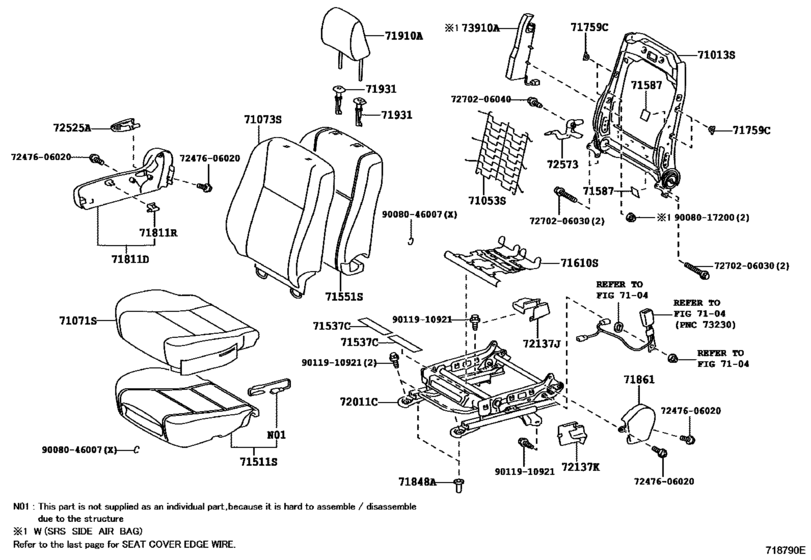

Front Seat & Seat Track ([03.2014 - 08.2017] PASSENGER SEAT (1403-1708)VEN ; (1403- )BZ,LA) 32
#OEMPart name
71013 71013-02300 Frame Sub-Assy, Front Seat Back, Rh
71053 71053-02080 Spring Sub-Assy, Front Seat Back, Rh
71071 71071-0ZK70-B2 Cover, Front Seat Cushion, Rh(For Separate Type)
71071 71071-0ZK60-B1 Cover, Front Seat Cushion, Rh(For Separate Type)
71073 71073-0ZK40-B2 Cover, Front Seat Back, Rh(For Separate Type)
71073 71073-0ZK30-B1 Cover, Front Seat Back, Rh(For Separate Type)
71511 71501-02250 Pad, Front Seat Cushion, Rh(For Separate Type)
71511 71501-02251 Pad, Front Seat Cushion, Rh(For Separate Type)
71537 71537-02330 Protector, Front Seat Cushion Edge, Rh
71551 71551-02B30 Pad, Front Seat Back, Rh(For Separate Type)
71587 71587-02050 Protector, Front Seat Back Edge
71610 71610-06380 Spring Assy, Front Seat Cushion, Rh(For Separate Type)
71759 71759-02060 Hook, Front Seat Back, No.1
71811 71811-02710-C0 Shield, Front Seat Cushion, Rh
71811 71769-0C020 Clip(For Front Seat Shield, Rh)
71848 71848-0T020 Cap, Seat Adjuster Cover, Rh
71861 71861-02290-C0 Shield, Front Seat Cushion, Inner Rh
71910 71910-02P31-B1 Headrest Assy, Front Seat
71910 71910-02P21-B1 Headrest Assy, Front Seat
71931 71930-02330-B0 Support, Front Seat Headrest
71931 71931-02150-B0 Support, Front Seat Headrest
72011 72011-02260 Adjuster Sub-Assy, Front Seat, Rh
72137 72137-02320-C0 Cover, Front Seat Track, Rh Rear Outer
72137 72157-02300-C0 Cover, Front Seat Track, Rh Rear Inner
72525 72525-02241-C0 Handle, Reclining Adjuster Release, Rh
72573 72573-02060 Lever, Reclining Control, Rh
7247606020 72476-06020 Screw, Horizontal Jack, Inner
7270206030 72702-06030 Bracket Sub-assy, Rear Seat Back Striker
7270206040 72702-06040 Bracket Sub-assy, Rear Seat Back Striker
9008017200 90080-17200 New Genuine Part
9008046007 90080-46007 Ring, Hog, Small (For Front Seat)
9011910921 90119-10921 BOLT WWASHER
