Search › Model › ZRE173

ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

2,699 items

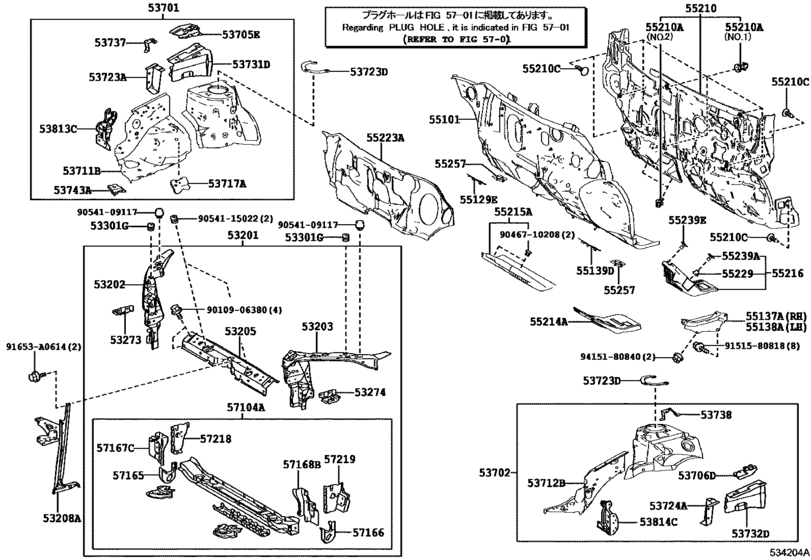

Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN) 56

#	OEM	Part name
53201	53201-02390	Support Sub-Assy, Radiator
53202	53202-02200	Support Sub-Assy, Radiator, Rh
53203	53203-02200	Support Sub-Assy, Radiator, Lh
53205	53205-02260	Support Sub-Assy, Radiator, Upper
53208	53208-02220	Support Sub-Assy, Hood Lock
53273	53273-02200	Bracket, Front Bumper Arm Mounting, Rh
53274	53274-02190	Bracket, Front Bumper Arm Mounting, Lh
53301	53384-50010	Cushion, Hood Bumper
53701	53701-02360	Apron Sub-Assy, Front Fender, Rh
53702	53702-02280	Apron Sub-Assy, Front Fender, Lh
53705	53705-12020	Member Sub-Assy, Front Apron To Cowl Side, Rh
53706	53706-12040	Member, Front Apron To Cowl Side, Lower Front Lh
53711	53711-02110	Apron, Front Fender, Front Rh
53712	53712-02130	Apron, Front Fender, Front Lh
53717	53717-02080	Plate, Fender Apron
53723	53723-12080	Reinforcement, Front Spring Support, Rh
53723	53723-12110	Reinforcement, Front Spring Support, No.2 Rh
53724	53724-12070	Reinforcement, Front Spring Support, Lh
53731	53731-12160	Member, Front Apron To Cowl Side, Upper Rh
53732	53732-12140	Member, Front Apron To Cowl Side, Upper Lh
53737	53737-02160	Plate, Front Apron To Cowl Side Member, Rh
53738	53738-02130	Plate, Front Apron To Cowl Side Member, Lh
53743	53743-02030	Reinforcement, Front Fender Apron, Front Rh
53813	53803-02070	Extension, Front Fender, Rh
53814	53814-02140	Extension, Front Fender, Lh
55101	55101-02E80	Panel Sub-Assy, Dash
55129	55129-02070	Cover, Dash Panel Hole, Rh
55137	55137-02080	Brace, Dash To Frame, Rh
55138	55138-02070	Brace, Dash To Frame, Lh
55139	55139-02060	Cover, Dash Panel Hole, Lh
55210	55210-02550	Insulator Assy, Dash Panel
55210	90467-11122	Clip
55210	90467-11127	Clip
55210	90467-08186-C0	Clip(For Front Bumper), No.1
55210	90467-08186-C3	Clip(For Front Bumper), No.1
55214	55214-12110	Pad, Dash Panel Insulator, No.2
55215	55215-02090	Pad, Dash Panel Insulator, No.3
55216	55216-02150	Pad, Dash Panel Insulator, No.4
55223	55223-02241	Insulator, Dash Panel, Outer
55229	55229-48010	Plate, Dash Panel Insulator, No.4
55239	55239-48020	Plate, Dash Panel Insulator, No.3
55257	55257-02040	Cover, Dash Panel Opening
57104	57104-02290	Member Sub-Assy, Front Cross
57165	57165-02100	Reinforcement, Front Crossmember, Lower Rh
57166	57166-02020	Reinforcement, Front Crossmember, Lower Lh
57167	57167-02110	Gusset, Front Crossmember Side, Rh
57168	57168-02110	Gusset, Front Crossmember Side, Lh
57218	57218-12010	Gusset, Front Side Member, No.1
57219	57219-12010	Gusset, Front Side Member, No.2
91653	91653-A0614	BOLT WWASHER
9010906380	90109-06380	BOLT
9046710208	90467-10208	Clip
9054109117	90541-09117	Cushion, Radiator Support
9054115022	90541-15022	Cushion, Radiator Support
9151580818	91515-80818	New Genuine Part
9415180840	94151-80840	NUT, FLANGE

OEM	Part name	Category
53201-02390	Support Sub-Assy, Radiator	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53202-02200	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53203-02200	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53205-02260	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53208-02220	Support Sub-Assy, Hood Lock	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53273-02200	Bracket, Front Bumper Arm Mounting, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53274-02190	Bracket, Front Bumper Arm Mounting, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53384-50010	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53701-02360	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53702-02280	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53705-12020	Member Sub-Assy, Front Apron To Cowl Side, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53706-12040	Member, Front Apron To Cowl Side, Lower Front Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53711-02110	Apron, Front Fender, Front Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53712-02130	Apron, Front Fender, Front Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53717-02080	Plate, Fender Apron	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53723-12080	Reinforcement, Front Spring Support, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53723-12110	Reinforcement, Front Spring Support, No.2 Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53724-12070	Reinforcement, Front Spring Support, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53731-12160	Member, Front Apron To Cowl Side, Upper Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53732-12140	Member, Front Apron To Cowl Side, Upper Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53737-02160	Plate, Front Apron To Cowl Side Member, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53738-02130	Plate, Front Apron To Cowl Side Member, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53743-02030	Reinforcement, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53803-02070	Extension, Front Fender, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
53814-02140	Extension, Front Fender, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55101-02E80	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55129-02070	Cover, Dash Panel Hole, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55137-02080	Brace, Dash To Frame, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55138-02070	Brace, Dash To Frame, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55139-02060	Cover, Dash Panel Hole, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55210-02550	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55214-12110	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55215-02090	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55216-02150	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55223-02241	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55229-48010	Plate, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55239-48020	Plate, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
55257-02040	Cover, Dash Panel Opening	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57104-02290	Member Sub-Assy, Front Cross	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57165-02100	Reinforcement, Front Crossmember, Lower Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57166-02020	Reinforcement, Front Crossmember, Lower Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57167-02110	Gusset, Front Crossmember Side, Rh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57168-02110	Gusset, Front Crossmember Side, Lh	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57218-12010	Gusset, Front Side Member, No.1	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
57219-12010	Gusset, Front Side Member, No.2	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90109-06380	BOLT	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90467-08186-C0	Clip(For Front Bumper), No.1	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90467-08186-C3	Clip(For Front Bumper), No.1	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90467-10208	Clip	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90467-11122	Clip	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90467-11127	Clip	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90541-09117	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
90541-15022	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
91515-80818	New Genuine Part	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
91653-A0614	BOLT WWASHER	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)
94151-80840	NUT, FLANGE	Front Fender Apron & Dash Panel ([03.2014 - 08.2017] (1403-1703)BZ,LA ; (1403-1708)VEN)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 170
Collected: 2026-08-02
