ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

2,699 items

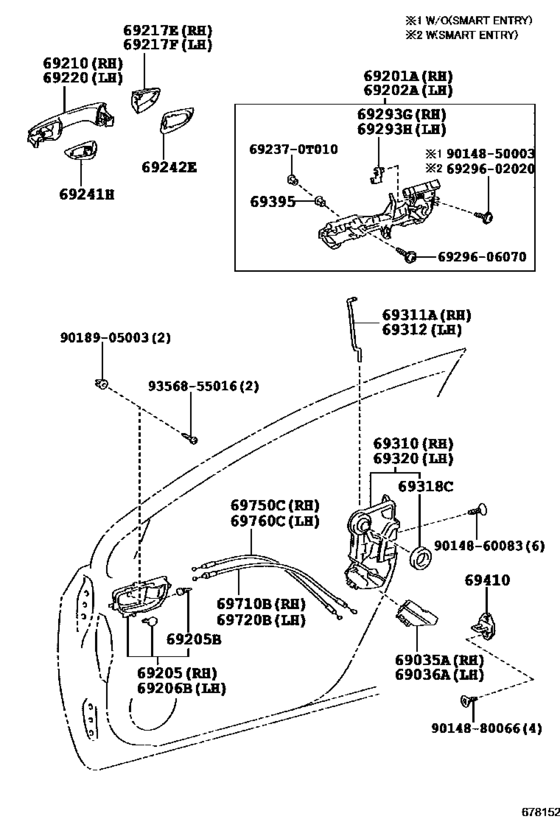

Front Door Lock & Handle ([03.2014 - ] (1403- )) 36

#	OEM	Part name
69035	69035-02010	Cover Sub-Assy, Front Door Lock, Rh
69036	69036-02010	Cover Sub-Assy, Front Door Lock, Lh
69201	69201-02250	Frame Sub-Assy, Front Door Outside Handle, Rh
69202	69202-02190	Frame Sub-Assy, Front Door Outside Handle, Lh
69205	69205-02320-B0	Handle Sub-Assy, Front Door Inside, Rh
69205	90541-04027	Cushion(For Front Door Inside Handle)
69205	69205-02310-B0	Handle Sub-Assy, Front Door Inside, Rh
69206	69206-02320-B0	Handle Sub-Assy, Front Door Inside, Lh
69206	69206-02310-B0	Handle Sub-Assy, Front Door Inside, Lh
69210	69211-02930	Handle Assy, Front Door, Outside Rh
69217	69217-02954	Cover, Front Door Outside Handle, Rh
69217	69218-02911	Cover, Front Door Outside Handle, Lh
69220	69212-02903	Handle Assy, Front Door Outside, Lh
69241	69241-02140	Pad, Rear Door Outside Handle, Front
69241	69241-02150	Pad, Rear Door Outside Handle, Front
69242	69242-02130	Pad, Front Door Outside Handle, Rear
69242	69242-02140	Pad, Front Door Outside Handle, Rear
69293	69293-12030	Snap, Front Door Outside Handle
69293	69293-12040	Snap, Front Door Outside Handle
69310	69030-02530	Lock Assy, Front Door, Rh
69311	69311-02290	Rod, Front Door Lock Open, Rh
69312	69312-02290	Rod, Front Door Lock Open, Lh
69318	69318-AA010	Seal, Door Lock Wiring Harness
69320	69040-02510	Lock Assy, Front Door, Lh
69395	69239-0T010	Bush(For Rear Door Outside Handle)
69410	69410-02090	Plate Assy, Front Door Lock Striker
69710	69710-02270	Cable Assy, Front Door Lock Remote Control, Rh
69750	69750-02300	Cable Assy, Front Door Inside Locking, Rh
692370	69237-0T010	Retainer, Door Outside Handle
6929602020	69296-02020	Screw, Door Inside Handle
6929606070	69296-06070	Screw, Door Inside Handle
9014850003	90148-50003	Screw Hex Lobular
9014860083	90148-60083	SCREW HEXALOBULAR
9014880066	90148-80066	SCREW HEXALOBULAR
9018905003	90189-05003	CLIP
9356855016	93568-55016	Screw

OEM	Part name	Category
69030-02530	Lock Assy, Front Door, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69035-02010	Cover Sub-Assy, Front Door Lock, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69036-02010	Cover Sub-Assy, Front Door Lock, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69040-02510	Lock Assy, Front Door, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69201-02250	Frame Sub-Assy, Front Door Outside Handle, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69202-02190	Frame Sub-Assy, Front Door Outside Handle, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69205-02310-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69205-02320-B0	Handle Sub-Assy, Front Door Inside, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69206-02310-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69206-02320-B0	Handle Sub-Assy, Front Door Inside, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69211-02930	Handle Assy, Front Door, Outside Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69212-02903	Handle Assy, Front Door Outside, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69217-02954	Cover, Front Door Outside Handle, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69218-02911	Cover, Front Door Outside Handle, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69237-0T010	Retainer, Door Outside Handle	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69239-0T010	Bush(For Rear Door Outside Handle)	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69241-02140	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69241-02150	Pad, Rear Door Outside Handle, Front	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69242-02130	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69242-02140	Pad, Front Door Outside Handle, Rear	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69293-12030	Snap, Front Door Outside Handle	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69293-12040	Snap, Front Door Outside Handle	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69296-02020	Screw, Door Inside Handle	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69296-06070	Screw, Door Inside Handle	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69311-02290	Rod, Front Door Lock Open, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69312-02290	Rod, Front Door Lock Open, Lh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69318-AA010	Seal, Door Lock Wiring Harness	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69410-02090	Plate Assy, Front Door Lock Striker	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69710-02270	Cable Assy, Front Door Lock Remote Control, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
69750-02300	Cable Assy, Front Door Inside Locking, Rh	Front Door Lock & Handle ([03.2014 - ] (1403- ))
90148-50003	Screw Hex Lobular	Front Door Lock & Handle ([03.2014 - ] (1403- ))
90148-60083	SCREW HEXALOBULAR	Front Door Lock & Handle ([03.2014 - ] (1403- ))
90148-80066	SCREW HEXALOBULAR	Front Door Lock & Handle ([03.2014 - ] (1403- ))
90189-05003	CLIP	Front Door Lock & Handle ([03.2014 - ] (1403- ))
90541-04027	Cushion(For Front Door Inside Handle)	Front Door Lock & Handle ([03.2014 - ] (1403- ))
93568-55016	Screw	Front Door Lock & Handle ([03.2014 - ] (1403- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 170
Collected: 2026-08-02
