Search › Model › ZRE173

ZRE173

Toyota COROLLA · 2014 · 2,699 parts · 170 categories

← Back to categories

2,699 items

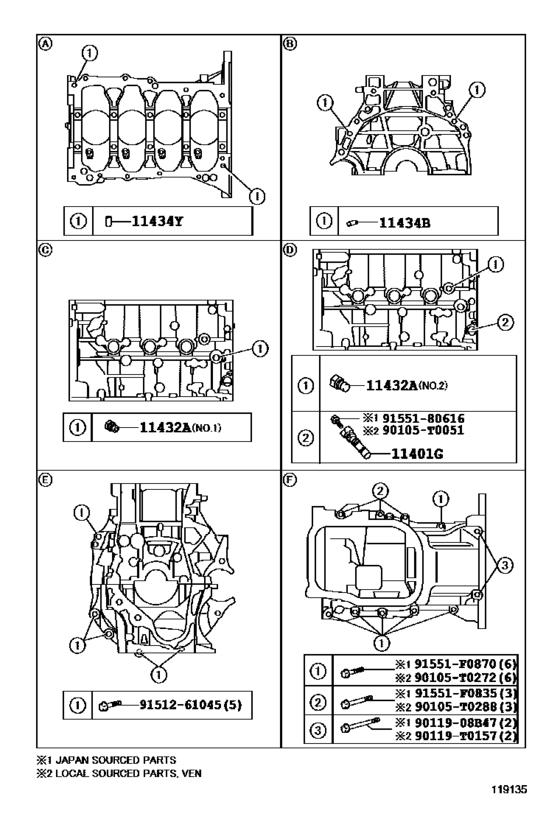

Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE) 16

#	OEM	Part name
11401	90919-05070	Sensor, Crank Position
11432	90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)
11432	90345-53006	Plug, W/head Taper Screw, No.1
11434	90250-10113	Pin, Straight(For Timing Gear Cover Set)
11434	90250-T0018	Pin, Straight(For Clutch Housing Set)
11434	90250-08120	Pin, Straight, No.1
11434	90250-T0007	Pin, Straight(For Timing Gear Case)
90105	90105-T0051	New Genuine Part
90105	90105-T0272	New Genuine Part
90105	90105-T0288	New Genuine Part
90119	90119-T0157	New Genuine Part
91551	91551-F0835	New Genuine Part
91551	91551-F0870	BOLT FLANGE
9011908	90119-08B47	New Genuine Part
9151261045	91512-61045	Bolt
9155180616	91551-80616	BOLT FLANGE

OEM	Part name	Category
90105-T0051	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90105-T0272	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90105-T0288	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90119-08B47	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90119-T0157	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90250-08120	Pin, Straight, No.1	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90250-10113	Pin, Straight(For Timing Gear Cover Set)	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90250-T0007	Pin, Straight(For Timing Gear Case)	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90250-T0018	Pin, Straight(For Clutch Housing Set)	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90345-52001	Cock Sub-Assy, Water Drain(For Cylinder Block)	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90345-53006	Plug, W/head Taper Screw, No.1	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
90919-05070	Sensor, Crank Position	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
91512-61045	Bolt	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
91551-80616	BOLT FLANGE	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
91551-F0835	New Genuine Part	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)
91551-F0870	BOLT FLANGE	Cylinder Block ([03.2014 - 08.2017] (1403-1703)2ZR#,3ZRFBE ; (1403-1708)3ZRFE)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 170
Collected: 2026-08-02
