Search › Model › ZRE173
ZRE173

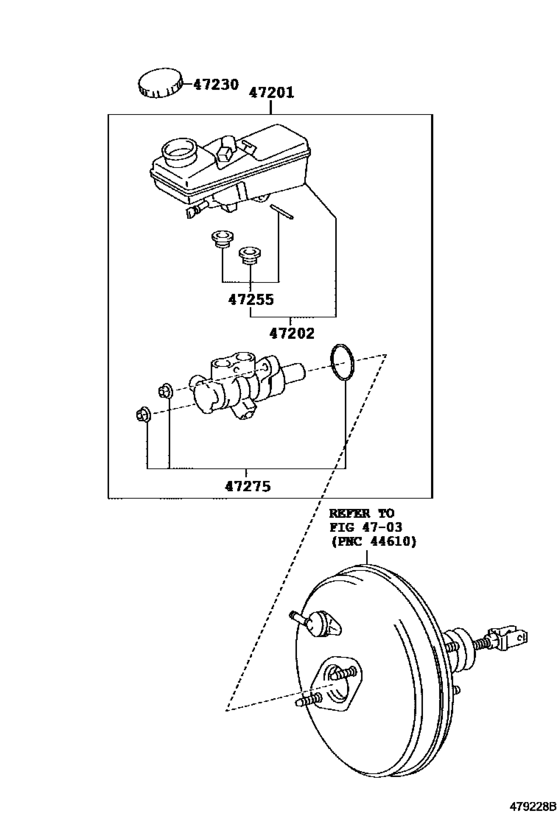

Brake Master Cylinder ([03.2014 - ] (1403- )) 5
| # | OEM | Part name |
|---|---|---|
| 47201 | 47201-09740 | Cylinder Sub-Assy, Brake Master |
| 47202 | 47220-09200 | Reservoir Sub-Assy, Brake Master Cylinder |
| 47230 | 47230-02250 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | 47255-09070 | Grommet, Master Cylinder Reservoir |
| 47275 | 47275-09010 | Gasket, Brake Master Cylinder |
| OEM | Part name | Category |
|---|---|---|
| 47201-09740 | Cylinder Sub-Assy, Brake Master | Brake Master Cylinder ([03.2014 - ] (1403- )) |
| 47220-09200 | Reservoir Sub-Assy, Brake Master Cylinder | Brake Master Cylinder ([03.2014 - ] (1403- )) |
| 47230-02250 | Cap Assy, Brake Master Cylinder Reservoir Filler | Brake Master Cylinder ([03.2014 - ] (1403- )) |
| 47255-09070 | Grommet, Master Cylinder Reservoir | Brake Master Cylinder ([03.2014 - ] (1403- )) |
| 47275-09010 | Gasket, Brake Master Cylinder | Brake Master Cylinder ([03.2014 - ] (1403- )) |
