Search › Model › ZRE173
ZRE173

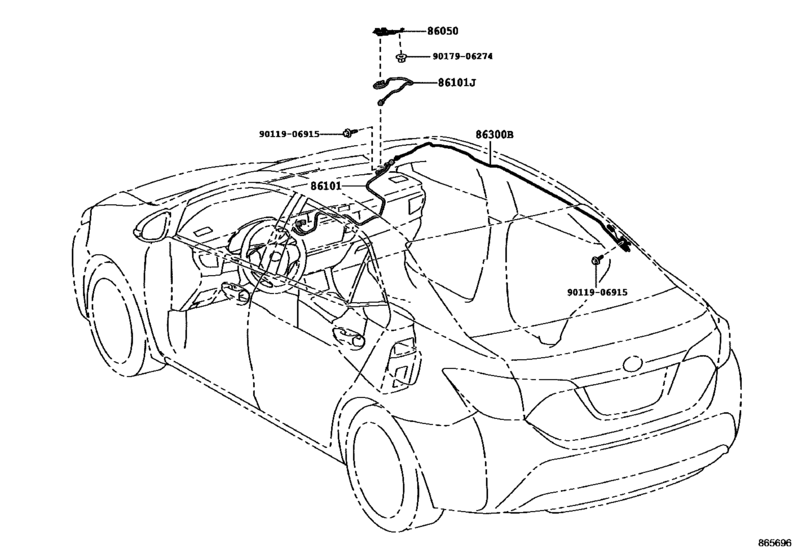

Antenna ([03.2014 - 03.2017] (1403-1703)) 4
| # | OEM | Part name |
|---|---|---|
| 86101 | 86101-02590 | Cord Sub-Assy, Antenna |
| 86300 | 86300-02420 | Antenna Assy, Amplifier, No.1 |
| 9011906915 | 90119-06915 | BOLT W-WASHER |
| 9017906274 | 90179-06274 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 86101-02590 | Cord Sub-Assy, Antenna | Antenna ([03.2014 - 03.2017] (1403-1703)) |
| 86300-02420 | Antenna Assy, Amplifier, No.1 | Antenna ([03.2014 - 03.2017] (1403-1703)) |
| 90119-06915 | BOLT W-WASHER | Antenna ([03.2014 - 03.2017] (1403-1703)) |
| 90179-06274 | Nut | Antenna ([03.2014 - 03.2017] (1403-1703)) |
